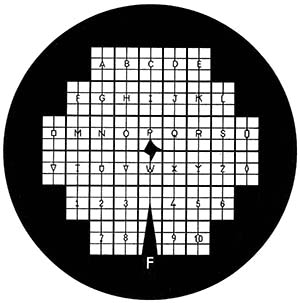

      EM-Tec finder TEM support grids, 200 mesh-R2
EM-Tec finder TEM support grids, 200 mesh-R2

Introduction

The high quality EM-Tec TEM support grids are designed as sturdy and stable support grids. They are available in a variety of materials to suit the application at hand. The materials are the standard copper, nickel, gold and molybdenum and additionally titanium, aluminium and stainless steel. There are two manufacturing processes used for the EM-Tec TEM support grids :

  • Electro forming processes for copper, copper/rhodium, nickel and gold TEM grids for well-defined features and consistent quality with an average thickness of 25um.
  • Electro etching processes for molybdenum, aluminium, titanium and stainless steel foils with a thickness of 25um, except titanium which is 15um and stainless steel which is 12um.

After manufacturing the EM-Tec grids undergo a proprietary cleaning process to reduce contamination issues. All EM-Tec TEM grids are inspected for 100% quality assurance. The thickness of the EM-Tec TEM grids results in a more rigid and stable TEM grid for specimen support and specimen support films. The 375um wide rim contributes to a greater stiffness and makes handling and transportation of the grids much easier than grids with a narrower rim. The EM-Tec high quality TEM support grids are packaged in anti-static plastic vials with vials of 100 grids for Cu, Cu/Rh and Ni. The EM-Tec grids made from Au, Mo, Al, Ti and stainless steel are packaged in vials of 25 grids. They all have the standard 3.05mm diameter. Available patterns are:


Benefits of the high quality EM-Tec TEM supports grids are:

  • Robust and rigid TEM grids for stable supports and easy handling
  • Cleaned to reduce contamination issue
  • Packaged in anti-static vials
  • 100% inspected
  • Largest selection of grid materials


Ordering information for square mesh EM-Tec TEM grids   (Specifications)

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec TEM square mesh support grids, 50 Mesh, 425 μm hole, 83 μm bar EM-Tec TEM square mesh support grids, 50 Mesh, 425 μm hole, 83 μm bar
Product # Unit Price* Add to Quote / Order
21-1M0050 EM-Tec TEM square mesh support grids, 50 Mesh, Copper
Qty:

vial/100 €20,50
Quantity discount: 10 or more: €19,50 vial/100
21-2M0050 EM-Tec TEM square mesh support grids, 50 Mesh, Nickel
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100
21-3M0050 EM-Tec TEM square mesh support grids, 50 Mesh, Gold
Qty:

vial/25 €34,00
Quantity discount: 10 or more: €32,50 vial/25
21-4M0050 EM-Tec TEM square mesh support grids, 50 Mesh, Molybdenum
Qty:

vial/25 €60,50
21-5M0050 EM-Tec TEM square mesh support grids, 50 Mesh, Aluminium
Qty:

vial/25 €51,00
21-6M0050 EM-Tec TEM square mesh support grids, 50 Mesh, Titanium
Qty:

vial/25 €115,50
21-7M0050 EM-Tec TEM square mesh support grids, 50 Mesh, Stainless Steel
Qty:

vial/25 €42,50



EM-Tec TEM square mesh support grids, 75 Mesh, 284 μm hole, 55 μm bar EM-Tec TEM square mesh support grids, 75 Mesh, 284 μm hole, 55 μm bar
Product # Unit Price* Add to Quote / Order
21-1M0075 EM-Tec TEM square mesh support grids, 75 Mesh, Copper
Qty:

vial/100 €20,50
Quantity discount: 10 or more: €19,50 vial/100
21-9M0075 EM-Tec TEM square mesh support grids, 75 Mesh, Copper/Rhodium
Qty:

vial/100 €24,00
21-2M0075 EM-Tec TEM square mesh support grids, 75 Mesh, Nickel
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100
21-3M0075 EM-Tec TEM square mesh support grids, 75 Mesh, Gold
Qty:

vial/25 €34,00
Quantity discount: 10 or more: €32,50 vial/25
21-4M0075 EM-Tec TEM square mesh support grids, 75 Mesh, Molybdenum
Qty:

vial/25 €61,00
21-5M0075 EM-Tec TEM square mesh support grids, 75 Mesh, Aluminium
Qty:

vial/25 €51,00
21-6M0075 EM-Tec TEM square mesh support grids, 75 Mesh, Titanium
Qty:

vial/25 €115,50
21-7M0075 EM-Tec TEM square mesh support grids, 75 Mesh, Stainless Steel
Qty:

vial/25 €43,00



EM-Tec TEM square mesh support grids, 100 Mesh, 204 μm hole, 50 μm bar EM-Tec TEM square mesh support grids, 100 Mesh, 204 μm hole, 50 μm bar
Product # Unit Price* Add to Quote / Order
21-1M0100 EM-Tec TEM square mesh support grids, 100 Mesh, Copper
Qty:

vial/100 €20,50
Quantity discount: 10 or more: €19,50 vial/100
21-9M0100 EM-Tec TEM square mesh support grids, 100 Mesh, Copper/Rhodium
Qty:

vial/100 €24,00
21-2M0100 EM-Tec TEM square mesh support grids, 100 Mesh, Nickel
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100
21-3M0100 EM-Tec TEM square mesh support grids, 100 Mesh, Gold
Qty:

vial/25 €34,00
Quantity discount: 10 or more: €32,50 vial/25
21-4M0100 EM-Tec TEM square mesh support grids, 100 Mesh, Molybdenum
Qty:

vial/25 €61,00
21-5M0100 EM-Tec TEM square mesh support grids, 100 Mesh, Aluminium
Qty:

vial/25 €51,00
21-6M0100 EM-Tec TEM square mesh support grids, 100 Mesh, Titanium
Qty:

vial/25 €115,50
21-7M0100 EM-Tec TEM square mesh support grids, 100 Mesh, Stainless Steel
Qty:

vial/25 €43,00



EM-Tec TEM square mesh support grids, 150 Mesh, 125 μm hole, 44 μm bar EM-Tec TEM square mesh support grids, 150 Mesh, 125 μm hole, 44 μm bar
Product # Unit Price* Add to Quote / Order
21-1M0150 EM-Tec TEM square mesh support grids, 150 Mesh, Copper
Qty:

vial/100 €20,50
Quantity discount: 10 or more: €19,50 vial/100
21-9M0150 EM-Tec TEM square mesh support grids, 150 Mesh, Copper/Rhodium
Qty:

vial/100 €24,00
21-2M0150 EM-Tec TEM square mesh support grids, 150 Mesh, Nickel
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100
21-3M0150 EM-Tec TEM square mesh support grids, 150 Mesh, Gold
Qty:

vial/25 €34,00
Quantity discount: 10 or more: €32,50 vial/25
21-4M0150 EM-Tec TEM square mesh support grids, 150 Mesh, Molybdenum
Qty:

vial/25 €61,00
21-5M0150 EM-Tec TEM square mesh support grids, 150 Mesh ,Aluminium
Qty:

vial/25 €51,00
21-6M0150 EM-Tec TEM square mesh support grids, 150 Mesh, Titanium
Qty:

vial/25 €115,50
21-7M0150 EM-Tec TEM square mesh support grids, 150 Mesh, Stainless Steel
Qty:

vial/25 €43,00



EM-Tec TEM square mesh support grids, 200 Mesh, 90 μm hole, 37 μm bar EM-Tec TEM square mesh support grids, 200 Mesh, 90 μm hole, 37 μm bar
Product # Unit Price* Add to Quote / Order
21-1M0200 EM-Tec TEM square mesh support grids, 200 Mesh, Copper
Qty:

vial/100 €20,50
Quantity discount: 10 or more: €19,50 vial/100
21-9M0200 EM-Tec TEM square mesh support grids, 200 Mesh, Copper/Rhodium
Qty:

vial/100 €24,00
21-2M0200 EM-Tec TEM square mesh support grids, 200 Mesh, Nickel
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100
21-3M0200 EM-Tec TEM square mesh support grids, 200 Mesh, Gold
Qty:

vial/25 €34,00
Quantity discount: 10 or more: €32,50 vial/25
21-4M0200 EM-Tec TEM square mesh support grids, 200 Mesh, Molybdenum
Qty:

vial/25 €61,00
21-5M0200 EM-Tec TEM square mesh support grids, 200 Mesh, Aluminium
Qty:

vial/25 €51,00
21-6M0200 EM-Tec TEM square mesh support grids, 200 Mesh, Titanium
Qty:

vial/25 €115,50
21-7M0200 EM-Tec TEM square mesh support grids, 200 Mesh, Stainless Steel
Qty:

vial/25 €43,00



EM-Tec TEM square mesh support grids, 300 Mesh, 54 μm hole, 31 μm bar EM-Tec TEM square mesh support grids, 300 Mesh, 54 μm hole, 31 μm bar
Product # Unit Price* Add to Quote / Order
21-1M0300 EM-Tec TEM square mesh support grids, 300 Mesh, Copper
Qty:

vial/100 €20,50
Quantity discount: 10 or more: €19,50 vial/100
21-9M0300 EM-Tec TEM square mesh support grids, 300 Mesh, Copper/Rhodium
Qty:

vial/100 €24,00
21-2M0300 EM-Tec TEM square mesh support grids, 300 Mesh, Nickel
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100
21-3M0300 EM-Tec TEM square mesh support grids, 300 Mesh, Gold
Qty:

vial/25 €34,00
Quantity discount: 10 or more: €32,50 vial/25
21-4M0300 EM-Tec TEM square mesh support grids, 300 Mesh, Molybdenum
Qty:

vial/25 €61,00
21-5M0300 EM-Tec TEM square mesh support grids, 300 Mesh, Aluminium
Qty:

vial/25 €51,00
21-6M0300 EM-Tec TEM square mesh support grids, 300 Mesh, Titanium
Qty:

vial/25 €154,00
21-7M0300 EM-Tec TEM square mesh support grids, 300 Mesh, Stainless Steel
Qty:

vial/25 €43,00



EM-Tec TEM square mesh support grids, 400 Mesh, 38 μm hole, 26 μm bar EM-Tec TEM square mesh support grids, 400 Mesh, 38 μm hole, 26 μm bar
Product # Unit Price* Add to Quote / Order
21-1M0400 EM-Tec TEM square mesh support grids, 400 Mesh, Copper
Qty:

vial/100 €21,00
Quantity discount: 10 or more: €19,95 vial/100
21-9M0400 EM-Tec TEM square mesh support grids, 400 Mesh, Copper/Rhodium
Qty:

vial/100 €24,00
21-2M0400 EM-Tec TEM square mesh support grids, 400 Mesh, Nickel
Qty:

vial/100 €25,50
Quantity discount: 10 or more: €24,50 vial/100
21-3M0400 EM-Tec TEM square mesh support grids, 400 Mesh, Gold
Qty:

vial/25 €37,00
Quantity discount: 10 or more: €35,15 vial/25
21-5M0400 EM-Tec TEM square mesh support grids, 400 Mesh, Aluminium (check availibility)
Qty:

vial/25 €54,00
21-6M0400 EM-Tec TEM square mesh support grids, 400 Mesh, Titanium (check availibility)
Qty:

vial/25 €172,50



EM-Tec TEM square mesh support grids, 500 Mesh, 28 μm hole, 23 μm bar EM-Tec TEM square mesh support grids, 500 Mesh, 28 μm hole, 23 μm bar
Product # Unit Price* Add to Quote / Order
21-1M0500 EM-Tec TEM square mesh support grids, 500 Mesh, Copper
Qty:

vial/100 €27,00
Quantity discount: 10 or more: €25,65 vial/100
21-2M0500 EM-Tec TEM square mesh support grids, 500 Mesh, Nickel
Qty:

vial/100 €30,50
Quantity discount: 10 or more: €29,00 vial/100
21-3M0500 EM-Tec TEM square mesh support grids, 500 Mesh, Gold
Qty:

vial/25 €43,50
Quantity discount: 10 or more: €41,50 vial/25



EM-Tec TEM square mesh support grids, 600 Mesh, 26 μm hole, 15 μm bar EM-Tec TEM square mesh support grids, 600 Mesh, 26 μm hole, 15 μm bar
Product # Unit Price* Add to Quote / Order
21-1M0600 EM-Tec TEM square mesh support grids, 600 Mesh, Copper
Qty:

vial/100 €30,50
Quantity discount: 10 or more: €29,00 vial/100
21-9M0600 EM-Tec TEM square mesh support grids, 600 Mesh, Copper/Rhodium (check availibility)
Qty:

vial/100 €30,00
21-2M0600 EM-Tec TEM square mesh support grids, 600 Mesh, Nickel
Qty:

vial/100 €30,50
Quantity discount: 10 or more: €29,00 vial/100



Ordering information for hexagonal mesh EM-Tec TEM support grids  (Specifications)

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec TEM hexagonal mesh support grids, 90 Mesh, 224x269 μm hole, 48 μm bar EM-Tec TEM hexagonal mesh support grids, 90 Mesh, 224x269 μm hole, 48 μm bar
Product # Unit Price* Add to Quote / Order
21-1H0090 EM-Tec TEM hexagonal mesh support grids, 90 Mesh, Copper
Qty:

vial/100 €20,50
Quantity discount: 10 or more: €19,50 vial/100
21-2H0090 EM-Tec TEM hexagonal mesh support grids, 90 Mesh, Nickel
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100



EM-Tec TEM hexagonal mesh support grids, 135 Mesh, 148x172 μm hole, 36 μm bar EM-Tec TEM hexagonal mesh support grids, 135 Mesh, 148x172 μm hole, 36 μm bar
Product # Unit Price* Add to Quote / Order
21-1H0135 EM-Tec TEM hexagonal mesh support grids, 135 Mesh, Copper
Qty:

vial/100 €20,50
Quantity discount: 10 or more: €19,50 vial/100
21-2H0135 EM-Tec TEM hexagonal mesh support grids, 135 Mesh, Nickel
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100
21-3H0135 EM-Tec TEM hexagonal mesh support grids, 135 Mesh, Gold
Qty:

vial/25 €33,50
Quantity discount: 10 or more: €32,00 vial/25



EM-Tec TEM hexagonal mesh support grids, 180 Mesh, 111x129 μm hole, 28 μm bar EM-Tec TEM hexagonal mesh support grids, 180 Mesh, 111x129 μm hole, 28 μm bar
Product # Unit Price* Add to Quote / Order
21-1H0180 EM-Tec TEM hexagonal mesh support grids, 180 Mesh, Copper
Qty:

vial/100 €20,50
Quantity discount: 10 or more: €19,50 vial/100
21-2H0180 EM-Tec TEM hexagonal mesh support grids, 180 Mesh, Nickel
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100
21-3H0180 EM-Tec TEM hexagonal mesh support grids, 180 Mesh, Gold
Qty:

vial/25 €33,50
Quantity discount: 10 or more: €32,00 vial/25



EM-Tec TEM hexagonal mesh support grids, 270 Mesh, 62x75 μm hole, 24 μm bar EM-Tec TEM hexagonal mesh support grids, 270 Mesh, 62x75 μm hole, 24 μm bar
Product # Unit Price* Add to Quote / Order
21-1H0270 EM-Tec TEM hexagonal mesh support grids, 270 Mesh, Copper
Qty:

vial/100 €20,50
Quantity discount: 10 or more: €19,50 vial/100
21-2H0270 EM-Tec TEM hexagonal mesh support grids, 270 Mesh, Nickel
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100
21-3H0270 EM-Tec TEM hexagonal mesh support grids, 270 Mesh, Gold
Qty:

vial/25 €33,50
Quantity discount: 10 or more: €32,00 vial/25



EM-Tec TEM hexagonal mesh support grids, 360 Mesh, 41x51 μm hole, 26 μm bar EM-Tec TEM hexagonal mesh support grids, 360 Mesh, 41x51 μm hole, 26 μm bar
Product # Unit Price* Add to Quote / Order
21-1H0360 EM-Tec TEM hexagonal mesh support grids, 360 Mesh, Copper
Qty:

vial/100 €20,50
Quantity discount: 10 or more: €19,50 vial/100
21-2H0360 EM-Tec TEM hexagonal mesh support grids, 360 Mesh, Nickel
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100
21-3H0360 EM-Tec TEM hexagonal mesh support grids, 360 Mesh, Gold
Qty:

vial/25 €33,50
Quantity discount: 10 or more: €32,00 vial/25



Ordering information for slotted or rectangular mesh EM-Tec TEM support grids  (Specifications)

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec slotted mesh TEM support grids, 50/200 mesh, 425x87 μm hole, 40 μm bar EM-Tec slotted mesh TEM support grids, 50/200 mesh, 425x87 μm hole, 40 μm bar
Product # Unit Price* Add to Quote / Order
21-1R0520 EM-Tec slotted mesh TEM support grids, 50/200 mesh, Copper
Qty:

vial/100 €27,50
Quantity discount: 10 or more: €26,50 vial/100
21-2R0520 EM-Tec slotted mesh TEM support grids, 50/200 mesh, Nickel
Qty:

vial/100 €30,50
Quantity discount: 10 or more: €29,00 vial/100



EM-Tec slotted mesh TEM support grids, 75/300 mesh, 285x55 μm hole, 30 μm bar EM-Tec slotted mesh TEM support grids, 75/300 mesh, 285x55 μm hole, 30 μm bar
Product # Unit Price* Add to Quote / Order
21-1R0730 EM-Tec slotted mesh TEM support grids, 75/300 mesh, Copper
Qty:

vial/100 €27,50
Quantity discount: 10 or more: €26,50 vial/100
21-2R0730 EM-Tec slotted mesh TEM support grids, 75/300 mesh, Nickel
Qty:

vial/100 €32,50
Quantity discount: 10 or more: €31,00 vial/100
21-3R0730 EM-Tec slotted mesh TEM support grids, 75/300 mesh, Gold
Qty:

vial/25 €46,50
Quantity discount: 10 or more: €44,50 vial/25



EM-Tec staggered slotted mesh TEM support grids, 75/300 mesh, 284x55 μm hole, 30 μm bar EM-Tec staggered slotted mesh TEM support grids, 75/300 mesh, 284x55 μm hole, 30 μm bar
Product # Unit Price* Add to Quote / Order
21-1RS730 EM-Tec staggered slotted mesh TEM support grids, 75/300 mesh, Copper
Qty:

vial/100 €27,50
Quantity discount: 10 or more: €26,50 vial/100
21-2RS730 EM-Tec staggered slotted mesh TEM support grids, 75/300 mesh, Nickel
Qty:

vial/100 €32,50
Quantity discount: 10 or more: €31,00 vial/100
21-3RS730 EM-Tec staggered slotted mesh TEM support grids, 75/300 mesh, Gold
Qty:

vial/25 €46,50
Quantity discount: 10 or more: €44,50 vial/25



EM-Tec slotted mesh TEM support grids, 100/400 mesh, 231x40 μm hole, 23 μm bar EM-Tec slotted mesh TEM support grids, 100/400 mesh, 231x40 μm hole, 23 μm bar
Product # Unit Price* Add to Quote / Order
21-1R1040 EM-Tec slotted mesh TEM support grids, 100/400 mesh, Copper
Qty:

vial/100 €21,50
Quantity discount: 10 or more: €20,50 vial/100
21-2R1040 EM-Tec slotted mesh TEM support grids, 100/400 mesh, Nickel
Qty:

vial/100 €25,50
Quantity discount: 10 or more: €24,50 vial/100



Ordering information for for folding, double or oyster EM-Tec TEM support grids  (Specifications)

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec folding TEM support grids, 50/50 mesh,  425/425 μm hole, 83/83 μm bar EM-Tec folding TEM support grids, 50/50 mesh, 425/425 μm hole, 83/83 μm bar
Product # Unit Price* Add to Quote / Order
21-1D0505 EM-Tec folding TEM support grids, 50/50 mesh, Copper
Qty:

vial/100 €38,50
Quantity discount: 10 or more: €37,00 vial/100
21-2D0505 EM-Tec folding TEM support grids, 50/50 mesh, Nickel
Qty:

vial/100 €45,50
Quantity discount: 10 or more: €43,50 vial/100
21-3D0505 EM-Tec folding TEM support grids, 50/50 mesh, Gold
Qty:

vial/25 €62,00
Quantity discount: 10 or more: €58,90 vial/25



EM-Tec folding TEM support grids, 100/100 mesh, 205/205 μm hole, 49/49 μm bar EM-Tec folding TEM support grids, 100/100 mesh, 205/205 μm hole, 49/49 μm bar
Product # Unit Price* Add to Quote / Order
21-1D1010 EM-Tec folding TEM support grids, 100/100 mesh, Copper
Qty:

vial/100 €38,50
Quantity discount: 10 or more: €37,00 vial/100
21-2D1010 EM-Tec folding TEM support grids, 100/100 mesh, Nickel
Qty:

vial/100 €45,50
Quantity discount: 10 or more: €43,50 vial/100
21-3D1010 EM-Tec folding TEM support grids, 100/100 mesh, Gold
Qty:

vial/25 €63,00
Quantity discount: 10 or more: €60,00 vial/25
21-4D1010 EM-Tec folding TEM support grids, 100/100 mesh, Molybdenum
Qty:

vial/25 €120,00
21-6D1010 EM-Tec folding TEM support grids, 100/100 mesh, Titanium
Qty:

vial/25 €229,50
21-7D1010 EM-Tec folding TEM support grids, 100/100 mesh, Stainless Steel
Qty:

vial/25 €68,00



EM-Tec folding TEM support grids, 100/200 mesh, 205/90 μm hole, 49/37 μm bar EM-Tec folding TEM support grids, 100/200 mesh, 205/90 μm hole, 49/37 μm bar
Product # Unit Price* Add to Quote / Order
21-1D1020 EM-Tec folding TEM support grids, 100/200 mesh, Copper
Qty:

vial/100 €38,50
Quantity discount: 10 or more: €37,00 vial/100
21-2D1020 EM-Tec folding TEM support grids, 100/200 mesh, Nickel
Qty:

vial/100 €45,50
Quantity discount: 10 or more: €43,50 vial/100
21-3D1020 EM-Tec folding TEM support grids, 100/200 mesh, Gold
Qty:

vial/25 €63,00
Quantity discount: 10 or more: €60,00 vial/25
21-4D1020 EM-Tec folding TEM support grids, 100/200 mesh, Molybdenum
Qty:

vial/25 €120,00
21-6D1020 EM-Tec folding TEM support grids, 100/200 mesh, Titanium
Qty:

vial/25 €229,50
21-7D1020 EM-Tec folding TEM support grids, 100/200 mesh, Stainless Steel
Qty:

vial/25 €68,00



EM-Tec folding TEM support grids, 100/300 mesh, 205/57 μm hole, 49/28 μm bar EM-Tec folding TEM support grids, 100/300 mesh, 205/57 μm hole, 49/28 μm bar
Product # Unit Price* Add to Quote / Order
21-1D1030 EM-Tec folding TEM support grids, 100/300 mesh, Copper
Qty:

vial/100 €38,50
Quantity discount: 10 or more: €37,00 vial/100
21-2D1030 EM-Tec folding TEM support grids, 100/300 mesh, Nickel
Qty:

vial/100 €45,50
Quantity discount: 10 or more: €43,50 vial/100
21-3D1030 EM-Tec folding TEM support grids, 100/300 mesh, Gold
Qty:

vial/25 €63,00
Quantity discount: 10 or more: €60,00 vial/25
21-6D1030 EM-Tec folding TEM support grids, 100/300 mesh, Titanium
Qty:

vial/25 €261,00
21-7D1030 EM-Tec folding TEM support grids, 100/300 mesh, Stainless Steel
Qty:

vial/25 €68,00



EM-Tec folding TEM support grids, 100/400 mesh, 205/38 μm hole, 49/26 μm bar EM-Tec folding TEM support grids, 100/400 mesh, 205/38 μm hole, 49/26 μm bar
Product # Unit Price* Add to Quote / Order
21-1D1040 EM-Tec folding TEM support grids, 100/400 mesh, Copper
Qty:

vial/100 €38,50
Quantity discount: 10 or more: €37,00 vial/100
21-2D1040 EM-Tec folding TEM support grids, 100/400 mesh, Nickel
Qty:

vial/100 €45,50
Quantity discount: 10 or more: €43,50 vial/100



EM-Tec folding reference TEM support grids, 200/200 mesh, 112/108 μm hole, 15/19 μm bar EM-Tec folding reference TEM support grids, 200/200 mesh, 112/108 μm hole, 15/19 μm bar
Product # Unit Price* Add to Quote / Order
21-1D2020 EM-Tec folding reference TEM support grids, 200/200 mesh, Copper
Qty:

vial/25 €38,50
Quantity discount: 10 or more: €37,00 vial/25
21-2D2020 EM-Tec folding reference TEM support grids, 200/200 mesh, Nickel
Qty:

vial/25 €45,50
Quantity discount: 10 or more: €43,50 vial/25



Ordering information for aperture solid EM-Tec TEM support grids  (Specifications)

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec aperture TEM support grid, 400um hole EM-Tec aperture TEM support grid, 400um hole
Product # Unit Price* Add to Quote / Order
21-1A0400 EM-Tec aperture TEM support grid, 400um hole, Copper
Qty:

vial/100 €29,50
Quantity discount: 10 or more: €28,50 vial/100
21-2A0400 EM-Tec aperture TEM support grid, 400um hole, Nickel
Qty:

vial/100 €34,50
Quantity discount: 10 or more: €33,00 vial/100
21-4A0400 EM-Tec aperture TEM support grid, 400um hole, Molybdenum
Qty:

vial/25 €72,00
21-6A0400 EM-Tec aperture TEM support grid, 400um hole, Titanium
Qty:

vial/25 €168,00
21-7A0400 EM-Tec aperture TEM support grid, 400um hole, Stainless Steel
Qty:

vial/25 €61,00



EM-Tec aperture TEM support grid, 600um hole EM-Tec aperture TEM support grid, 600um hole
Product # Unit Price* Add to Quote / Order
21-1A0600 EM-Tec aperture TEM support grid, 600um hole, Copper
Qty:

vial/100 €29,50
Quantity discount: 10 or more: €28,50 vial/100
21-2A0600 EM-Tec aperture TEM support grid, 600um hole, Nickel
Qty:

vial/100 €34,50
Quantity discount: 10 or more: €33,00 vial/100
21-3A0600 EM-Tec aperture TEM support grid, 600um hole, Gold
Qty:

vial/25 €48,50
Quantity discount: 10 or more: €46,50 vial/25
21-4A0600 EM-Tec aperture TEM support grid, 600um hole, Molybdenum
Qty:

vial/25 €72,00



EM-Tec aperture TEM support grid, 800um hole EM-Tec aperture TEM support grid, 800um hole
Product # Unit Price* Add to Quote / Order
21-1A0800 EM-Tec aperture TEM support grid, 800um hole, Copper
Qty:

vial/100 €29,50
Quantity discount: 10 or more: €28,50 vial/100
21-2A0800 EM-Tec aperture TEM support grid, 800um hole, Nickel
Qty:

vial/100 €34,50
Quantity discount: 10 or more: €33,00 vial/100



EM-Tec aperture TEM support grid, 1000um hole EM-Tec aperture TEM support grid, 1000um hole
Product # Unit Price* Add to Quote / Order
21-1A1000 EM-Tec aperture TEM support grid, 1000um hole, Copper
Qty:

vial/100 €29,50
Quantity discount: 10 or more: €28,50 vial/100
21-2A1000 EM-Tec aperture TEM support grid, 1000um hole, Nickel
Qty:

vial/100 €34,50
Quantity discount: 10 or more: €33,00 vial/100
21-3A1000 EM-Tec aperture TEM support grid, 1000um hole, Gold
Qty:

vial/25 €48,50
Quantity discount: 10 or more: €46,50 vial/25
21-4A1000 EM-Tec aperture TEM support grid, 1000um hole, Molybdenum
Qty:

vial/25 €72,00
21-5A1000 EM-Tec aperture TEM support grid, 1000um hole, Aluminium
Qty:

vial/25 €71,50
21-6A1000 EM-Tec aperture TEM support grid, 1000um hole, Titanium
Qty:

vial/25 €168,00
21-7A1000 EM-Tec aperture TEM support grid, 1000um hole, Stainless Steel
Qty:

vial/25 €61,00



EM-Tec aperture TEM support grid, 1500um hole EM-Tec aperture TEM support grid, 1500um hole
Product # Unit Price* Add to Quote / Order
21-1A1500 EM-Tec aperture TEM support grid, 1500um hole, Copper
Qty:

vial/100 €29,50
Quantity discount: 10 or more: €28,50 vial/100
21-2A1500 EM-Tec aperture TEM support grid, 1500um hole, Nickel
Qty:

vial/100 €34,50
Quantity discount: 10 or more: €33,00 vial/100
21-4A1500 EM-Tec aperture TEM support grid, 1500um hole, Molybdenum
Qty:

vial/25 €72,00
21-5A1500 EM-Tec aperture TEM support grid, 1500um hole, Aluminium
Qty:

vial/25 €73,50
21-6A1500 EM-Tec aperture TEM support grid, 1500um hole, Titanium
Qty:

vial/25 €168,00
21-7A1500 EM-Tec aperture TEM support grid, 1500um hole, Stainless Steel
Qty:

vial/25 €61,00



EM-Tec aperture TEM support grid, 2000um hole EM-Tec aperture TEM support grid, 2000um hole
Product # Unit Price* Add to Quote / Order
21-1A2000 EM-Tec aperture TEM support grid, 2000um hole, Copper
Qty:

vial/100 €29,50
Quantity discount: 10 or more: €28,50 vial/100
21-2A2000 EM-Tec aperture TEM support grid, 2000um hole, Nickel
Qty:

vial/100 €34,50
Quantity discount: 10 or more: €33,00 vial/100



Ordering information for single slotted solid EM-Tec TEM support grids  (Specifications)

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec slotted TEM support grids, 0.2x0.5mm slot EM-Tec slotted TEM support grids, 0.2x0.5mm slot
Product # Unit Price* Add to Quote / Order
21-1S0205 EM-Tec slotted TEM support grids, 0.2x0.5mm slot, Copper
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100
21-2S0205 EM-Tec slotted TEM support grids, 0.2x0.5mm slot, Nickel
Qty:

vial/100 €25,00
Quantity discount: 10 or more: €24,00 vial/100



EM-Tec slotted TEM support grids, 0.2x1.5mm slot EM-Tec slotted TEM support grids, 0.2x1.5mm slot
Product # Unit Price* Add to Quote / Order
21-1S0215 EM-Tec slotted TEM support grids, 0.2x1.5mm slot, Copper
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100
21-2S0215 EM-Tec slotted TEM support grids, 0.2x1.5mm slot, Nickel
Qty:

vial/100 €25,00
Quantity discount: 10 or more: €24,00 vial/100



EM-Tec slotted TEM support grids, 0.42x2.0mm slot EM-Tec slotted TEM support grids, 0.42x2.0mm slot
Product # Unit Price* Add to Quote / Order
21-1S0420 EM-Tec slotted TEM support grids, 0.42x2.0mm slot, Copper
Qty:

vial/100 €29,50
Quantity discount: 10 or more: €28,50 vial/100
21-2S0420 EM-Tec slotted TEM support grids, 0.42x2.0mm slot, Nickel
Qty:

vial/100 €34,50
Quantity discount: 10 or more: €33,00 vial/100
21-4S0420 EM-Tec slotted TEM support grids, 0.42x2.0mm slot, Molybdenum
Qty:

vial/25 €72,00
21-5S0420 EM-Tec slotted TEM support grids, 0.42x2.0mm slot, Aluminium
Qty:

vial/25 €73,50
21-6S0420 EM-Tec slotted TEM support grids, 0.42x2.0mm slot, Titanium
Qty:

vial/25 €168,00
21-7S0420 EM-Tec slotted TEM support grids, 0.42x2.0mm slot, Stainless Steel
Qty:

vial/25 €61,00



EM-Tec slotted TEM support grids, 0.98x2.0mm slot EM-Tec slotted TEM support grids, 0.98x2.0mm slot
Product # Unit Price* Add to Quote / Order
21-1S1020 EM-Tec slotted TEM support grids, 0.98x2.0mm slot, Copper
Qty:

vial/100 €23,00
Quantity discount: 10 or more: €22,00 vial/100
21-2S1020 EM-Tec slotted TEM support grids, 0.98x2.0mm slot, Nickel
Qty:

vial/100 €25,00
Quantity discount: 10 or more: €24,00 vial/100
21-4S1020 EM-Tec slotted TEM support grids, 0.98x2.0mm slot, Molybdenum
Qty:

vial/25 €73,50
21-5S1020 EM-Tec slotted TEM support grids, 0.98x2.0mm slot, Aluminium
Qty:

vial/25 €73,50
21-6S1020 EM-Tec slotted TEM support grids, 0.98x2.0mm slot, Titanium
Qty:

vial/25 €168,00
21-7S1020 EM-Tec slotted TEM support grids, 0.98x2.0mm slot, Stainless Steel
Qty:

vial/25 €61,00



Ordering information for EM-Tec reference TEM support grids

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec finder TEM support grids, 200 mesh-R2, centre line of six squares identified with numerals A-Z-0-10 EM-Tec finder TEM support grids, 200 mesh-R2, centre line of six squares identified with numerals A-Z-0-10
Product # Unit Price* Add to Quote / Order
21-1F0200 EM-Tec finder TEM support grids, 200 mesh-R2, Copper, centre line of six squares identified with numerals A-Z-0-10
Qty:

vial/100 €40,00
Quantity discount: 10 or more: €38,00 vial/100
21-2F0200 EM-Tec finder TEM support grids, 200 mesh-R2, Nickel, centre line of six squares identified with numerals A-Z-0-10
Qty:

vial/100 €45,60
Quantity discount: 10 or more: €43,50 vial/100
21-3F0200 EM-Tec finder TEM support grids, 200 mesh-R2, Gold, centre line of six squares identified with numerals A-Z-0-10
Qty:

vial/100 €267,50



EM-Tec finder TEM support grids, 400 mesh-R7, centre of each 6x4 squares identified with numerals A-Z-1-14 EM-Tec finder TEM support grids, 400 mesh-R7, centre of each 6x4 squares identified with numerals A-Z-1-14
Product # Unit Price* Add to Quote / Order
21-1F0400 EM-Tec finder TEM support grids, 400 mesh-R7, Copper, centre of each 6x4 squares identified with numerals A-Z-1-14
Qty:

vial/100 €40,00
Quantity discount: 10 or more: €38,00 vial/100
21-2F0400 EM-Tec finder TEM support grids, 400 mesh-R7, Nickel, centre of each 6x4 squares identified with numerals A-Z-1-14
Qty:

vial/100 €45,60
Quantity discount: 10 or more: €43,50 vial/100
21-3F0400 EM-Tec finder TEM support grids, 400 mesh-R7, Gold, centre of each 6x4 squares identified with numerals A-Z-1-14
Qty:

vial/100 €275,50



EM-Tec finder TEM support grids, 100 mesh-F1, centre cross line of four squares identified with letters A-L EM-Tec finder TEM support grids, 100 mesh-F1, centre cross line of four squares identified with letters A-L
Product # Unit Price* Add to Quote / Order
21-1F1100 EM-Tec finder TEM support grids, 100 mesh-F1, Copper, centre cross line of four squares identified with letters A-L
Qty:

vial/100 €65,50
Quantity discount: 10 or more: €62,50 vial/100
21-2F1100 EM-Tec finder TEM support grids, 100 mesh-F1, Nickel, centre cross line of four squares identified with letters A-L
Qty:

vial/100 €76,00
Quantity discount: 10 or more: €72,50 vial/100
21-3F1100 EM-Tec finder TEM support grids, 100 mesh-F1, Gold, centre cross line of four squares identified with letters A-L
Qty:

vial/25 €102,00
Quantity discount: 10 or more: €97,00 vial/25



EM-Tec finder TEM support grids, 200 mesh-F2, corner of each 5x5 squares identified with letters A-I EM-Tec finder TEM support grids, 200 mesh-F2, corner of each 5x5 squares identified with letters A-I
Product # Unit Price* Add to Quote / Order
21-1F1200 EM-Tec finder TEM support grids, 200 mesh-F2, Copper, corner of each 5x5 squares identified with letters A-I
Qty:

vial/100 €65,50
Quantity discount: 10 or more: €62,50 vial/100
21-2F1200 EM-Tec finder TEM support grids, 200 mesh-F2, Nickel, corner of each 5x5 squares identified with letters A-I
Qty:

vial/100 €76,00
Quantity discount: 10 or more: €72,50 vial/100
21-3F1200 EM-Tec finder TEM support grids, 200 mesh-F2, Gold, corner of each 5x5 squares identified with letters A-I
Qty:

vial/25 €102,00
Quantity discount: 10 or more: €97,00 vial/25



EM-Tec finder TEM support grids, 300 mesh-F3, corner of each 5x5 squares identified with letters A-U EM-Tec finder TEM support grids, 300 mesh-F3, corner of each 5x5 squares identified with letters A-U
Product # Unit Price* Add to Quote / Order
21-1F1300 EM-Tec finder TEM support grids, 300 mesh-F3, Copper, corner of each 5x5 squares identified with letters A-U
Qty:

vial/100 €72,50
Quantity discount: 10 or more: €69,00 vial/100
21-2F1300 EM-Tec finder TEM support grids, 300 mesh-F3, Nickel, corner of each 5x5 squares identified with letters A-U
Qty:

vial/100 €76,00
Quantity discount: 10 or more: €72,50 vial/100
21-3F1300 EM-Tec finder TEM support grids, 300 mesh-F3, Gold, corner of each 5x5 squares identified with letters A-U
Qty:

vial/25 €110,00
Quantity discount: 10 or more: €104,50 vial/25



EM-Tec finder TEM support grids, 400 mesh-F4, corner of each 5x5 squares identified with letters A-Z-A-K EM-Tec finder TEM support grids, 400 mesh-F4, corner of each 5x5 squares identified with letters A-Z-A-K
Product # Unit Price* Add to Quote / Order
21-1F1400 EM-Tec finder TEM support grids, 400 mesh-F4, Copper, corner of each 5x5 squares identified with letters A-Z-A-K
Qty:

vial/100 €72,50
Quantity discount: 10 or more: €69,00 vial/100
21-2F1400 EM-Tec finder TEM support grids, 400 mesh-F4, Nickel, corner of each 5x5 squares identified with letters A-Z-A-K
Qty:

vial/100 €83,00
Quantity discount: 10 or more: €79,00 vial/100
21-3F1400 EM-Tec finder TEM support grids, 400 mesh-F4, Gold, corner of each 5x5 squares identified with letters A-Z-A-K
Qty:

vial/25 €110,00
Quantity discount: 10 or more: €104,50 vial/25




Specifications for the EM-Tec TEM support grid patterns:


Specifications of the EM-Tec high quality square mesh TEM support grids  (order information)


Mesh

Pitch
µm

Hole
µm

Bar
µm

Transmission
%

Rim width
µm

Thickness*
µm

Tolerance ± µm

Diameter
mm

50

508

425

83

70

375

25

5

3.05

75

339

284

55

70

375

25

5

3.05

100

254

204

50

65

375

25

5

3.05

150

169

125

44

55

375

25

5

3.05

200

127

90

37

50

375

25

5

3.05

300

85

54

31

40

375

25

5

3.05

400

64

38

26

35

375

25

5

3.05

500

51

28

23

30

375

25

5

3.05

600

41

26

15

42

375

25

5

3.05

* Except Titanium (15µm) and stainless steel (12µm)

Specifications of the hexagonal mesh EM-Tec TEM support grids  (order information)


Mesh

Pitch
µm

Hole
µm

Bar
µm

Transmission
%

Rim width
µm

Thickness*
µm

Tolerance ± µm

Diameter
mm

90

272x317

224x269

48

70

375

25

5

3.05

135

186x208

148x172

36

65

375

25

5

3.05

180

139x157

111x129

28

65

375

25

5

3.05

270

86x99

62x75

24

55

375

25

5

3.05

360

67x79

41x51

26

40

375

25

5

3.05

* Except Titanium (15µm) and stainless steel (12µm)



Specifications of the slotted or rectangular mesh EM-Tec TEM support grids  (order information)


Mesh

Pitch
µm

Hole
µm

Bar
µm

Transmission
%

Rim width
µm

Thickness*
µm

Tolerance ± µm

Diameter
mm

50x200

508x127

425x87

40

62

375

25

5

3.05

75x300

340x85

285x55

30

62

375

25

5

3.05

75x300
Staggered

339x85

284x55

30

55

375

25

5

3.05

100x400

254x64

231x40

23

57

375

25

5

3.05



Specifications of the folding, double or oyster  EM-Tec TEM support grids  (order information)


Mesh

Pitch
µm

Hole
µm

Bar
µm

Transmission
%

Rim width
µm

Thickness*
µm

Tolerance ± µm

Diameter
mm

50/50

508/508

425/425

83/83

70/70

375

2 x 25

5

3.05

100/100

254/254

205/205

49/49

65/65

375

2x 25

5

3.05

100/200

254/127

205/90

49/37

65/50

375

2 x 25

5

3.05

100/300

254/85

205/57

49/28

65/45

375

2 x 25

5

3.05

100/400

254/64

205/38

49/26

65/35

375

2 x 25

5

3.05

200/200
Reference

127/127

112/108

15/19

78/72

275

2 x 25

2

3.05

* Except Titanium (15µm) and stainless steel (12µm)


Specifications of the aperture solid EM-Tec TEM support grids  (order information)


Aperture  µm

Tolerance ± µm

Thickness *µm

Diameter mm

400

20

25

3.05

600

20

25

3.05

800

20

25

3.05

1000

20

25

3.05

1500

20

25

3.05

2000

20

25

3.05

* Except Titanium (15µm) and stainless steel (12µm)

Specifications of the single slotted solid EM-Tec TEM support grids  (order information)


Slot

Width
µm

length
µm

Tolerance
± µm

Thickness *
µm

Diameter
mm

205

200

500

10

25

3.05

215

339

284

10

25

3.05

420

420

2000

20

25

3.05

1020

980

2000

20

25

3.05

* Except Titanium (15µm) and stainless steel (12µm)


Specifications of the EM-Tec reference / finder TEM support grids (order information)


Mesh

Pitch µm

Hole µm Thin/Thick

Bar µm Thin/Thick

Transmission %

Thickness µm

Tolerance ±  µm

Diameter mm

100

254

214 / 214

40/40

70

25

5

3.05

200

127

89 / 63

38/64

37

25

5

3.05

300

85

67 / 42

18/43

49

25

5

3.05

400

64

44 / 17

20/47

31

25

5

3.05





SEM Supplies

TEM Supplies

Calibration

Sample Preparation

AFM / SPM

  Product Menu with Images
  SEM Sample Stubs
  Carbon Tabs
  Sample Stub Adapters
  SEM Stage Adapters
  SEM Sample Holders
  SEM Preparation Stands
  Filaments / Cathodes
  Silicon Finder Grid
  Gatan 3View Pins
  FEI Volumescope Pins
  SEM Stub Storage Boxes
  Phenom Supplies
  JEOL NeoScope Supplies
  Hitachi TM Series Supplies
  Field & Lab Sampler Kits
  FlowView liquid sample Kit

Instruments

  Acoustic Enclosures
  Compact sputter coaters
  Cressington SEM coaters
  TEM Sample Prep
  Diaphragm Pump
  Rotary vacuum Pump
  Precision diamond saw
  TEM Grids
  TEM Support Films
  Silicon Nitride Films
  K-Kit Wet Cell Holder
  Graphene Films
  TEM Grid Boxes
  Cryo Grid Boxes
  TEM Sample Staining
  3mm Embedding Tubes
  Filaments/Cathodes
  Eyelash Manipulators

Cryo Supplies

  Cryo Grid Boxes
  Other Cryo Supplies

FIB Supplies

  FIB Lift-out Grids
  FIB Low Profile Stubs
  FIB Grid Holders
  FIB Pre-tilt Holders
  FIB Pre-tilt stubs
  FIB Grid Boxes
  SEM / FIB Magn. Calib.
  SEM Res. Test Spec.
  EDS / WDS Calibration
  TEM Calibration
  AFM / SPM Calibration
  LM Magn. Calibration

Vacuum Supplies

  Vacuum Gauges
  KF/NW Vacuum Parts
  KF/NW Vacuum Hoses
  Vacuum Oil and Grease
  Vacuum Sealant
  Diaphragm Pump
  Rotary vacuum Pump
  Vacuum Sample Storage
  Vacuum Pick-Up Pens

Sample Coating Supplies

  Sputter Targets
  Carbon Rods & Fibers
  Quartz QCM Crystals
  SEM Sample Coating Fluid

Evaporation Supplies

  Thermal Evaporation Sources
  Evaporation Materials
  Supports & Substrates
  SEM Preparation Stands
  Tweezers
  Probes & Picks
  Applicators & Swabs
  Plastic Transfer Pipettes
  Cutting Tools / Scissors
  Conductive Paint/Cement
  Conductive Tapes & Tabs
  Non-Conductive Adhesives
  Sample Storage
  Hand Tools
  Sorting Wire Mesh
  Preparation Surfaces
  Cleaning / Gloves
  Conductive Metal Powders
  Metallographic Sample Prep
  AFM/SPM Discs
  AFM/SPM Disc Pick-up Tool
  AFM/SPM Holders
  AFM/SPM Disc Storage
  Cantilever Tweezers
  AFM/SPM Discs Tweezers
  Nano-Tec Mica Discs
  HOPG Substrates

Light Microscopy

  Correlative Cover Slips
  Glass Microscope Slides
  Glass Cover Slips
  Quartz Microscope Slides
  Quartz Cover Slips
  Black Metal Slides
  Slide Storage Boxes
  LM Calibration
  Plastic Transfer Pipettes
  Optical Lens Tissue
  Glass Petri Dishes
  PTFE Beakers
