EM-Tec conductive copper SEM tapes



EM-Tec conductive copper SEM  tapes

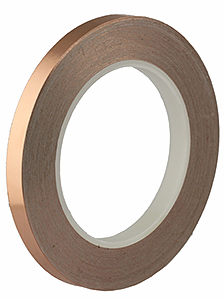

EM-Tec premium single sided conductive copper SEM tapes

EM-Tec premium single sided conductive copper tapes for SEM / FIB applications. Indispensable for making ground contacts between the sample surface and SEM stub or SEM sample holder. The tape is made with soft copper foil which is easily molded to follow the shape of the sample. The EM-Tec premium copper SEM tape is a highly electrically conductive tape with a conductive pressure sensitive acrylic adhesive and a paper liner. The resistance of the applied tape is  < 1 Ohm with an a high initial tack to provide good adhesion. It is recommended to assert light pressure on the tape to improve conductivity. Available in the practical widths of 3, 6, 10,12, 20 and 25 mm with a length of 25m. Conductive adhesive side covered with siliconised backing paper liner. Clean 76mm diameter plastic core.

Specifications of the EM-Tec premium single sided conductive copper tape:

Tape material

Copper, 99.98% purity

Adhesive

Conductive pressure sensitive acrylic adhesive

Copper tape thickness

0.035mm

Adhesive thickness

0.025mm

Total tape thickness

0.06mm

Backing paper thickness

0.14mm

Resistance

< 1 Ohm

Adhesive strength

14N / 25mm

Tape strength

45N / mm

Use temperature range

-10 to +120 °C

Length
Width

25m
Choice of 3, 6, 10, 12, 20 or 25mm

Core diameter

76mm (3”)



Ordering Information for EM-Tec single sided premium conductive copper tapes for SEM / FIB applications

*Prices are without tax. Tax might be added in cart.

EM-Tec SCT3 premium single sided conductive copper SEM tape 3mm x 25m EM-Tec SCT3 premium single sided conductive copper SEM tape 3mm x 25m
Product # Unit Price* Add to Quote / Cart
15-000803 each €12,00
Qty:


EM-Tec SCT6 premium single sided conductive copper SEM tape 6mm x 25m EM-Tec SCT6 premium single sided conductive copper SEM tape 6mm x 25m
Product # Unit Price* Add to Quote / Cart
15-000806 each €15,50
Qty:


EM-Tec SCT10 premium single sided conductive copper SEM tape 10mm x 25m EM-Tec SCT10 premium single sided conductive copper SEM tape 10mm x 25m
Product # Unit Price* Add to Quote / Cart
15-000810 each €19,50
Qty:


EM-Tec SCT12 premium single sided conductive copper SEM tape 12mm x 25m EM-Tec SCT12 premium single sided conductive copper SEM tape 12mm x 25m
Product # Unit Price* Add to Quote / Cart
15-000812 each €21,50
Qty:


EM-Tec SCT20 premium single sided conductive copper SEM tape 20mm x 25m EM-Tec SCT20 premium single sided conductive copper SEM tape 20mm x 25m
Product # Unit Price* Add to Quote / Cart
15-000820 each €29,50
Qty:


EM-Tec SCT25 premium single sided conductive copper SEM tape 25mm x 25m EM-Tec SCT25 premium single sided conductive copper SEM tape 25mm x 25m
Product # Unit Price* Add to Quote / Cart
15-000825 each €34,50
Qty:



EM-Tec conductive copper SEM  tapes
EM-Tec single sided conductive copper SEM tapes

Single sided conductive copper tapes for SEM / FIB applications. Indispensable for making ground contacts between the sample surface and SEM stub or SEM sample holder.  The tape is made with soft copper foil which is easily molded to follow the shape of the sample. Highly electrically conductive tape with conductive pressure sensitive acrylic adhesive. Resistance through copper < 1 Ohm and this tape has a high initial tack to provide good adhesion. It is recommended to assert pressure on the tape to improve conductivity. Available in the practical widths of 3, 6, 10,12, 20, 25 and 50 mm with a length of 30m. Conductive adhesive side covered with siliconised backing paper liner. Clean 76mm diameter plastic core.

Specifications:

Tape material  Copper, 99.98% purity
Adhesive  Conductive pressure sensitive acrylic adhesive
Copper tape thickness 0.035mm
Adhesive thickness  0.025mm
Total tape thickness 0.06mm
Backing paper thickness 0.09mm
Resistance < 1 Ohm (through copper)
Adhesive strength  14N / 25mm
Tape strength   45N / mm
Use temperature range  -10 to +120 °C

Length

Width

33m

Choice of 3, 6, 10, 12, 20, 25 or 50mm
Core diameter  76mm (3”)



Ordering Information for EM-Tec single sided conductive copper tapes for SEM / FIB applications

*Prices are without tax. Tax might be added in cart.

EM-Tec single sided conductive copper SEM tape 3mm x 30m EM-Tec single sided conductive copper SEM tape 3mm x 30m
Product # Unit Price* Add to Quote / Cart
15-000103 each €11,00
Qty:


Replaced by #15-000806. EM-Tec single sided conductive copper SEM tape 6mm x 30m, not available anymore Replaced by #15-000806. EM-Tec single sided conductive copper SEM tape 6mm x 30m, not available anymore
Product # Unit Price* Add to Quote / Cart
15-000106 each €14,00
Qty:


Replaced by #15-000806. EM-Tec single sided conductive copper SEM tape 6mm x 30m, not available anymore EM-Tec single sided conductive copper SEM tape 10mm x 30m
Product # Unit Price* Add to Quote / Cart
15-000110 each €18,00
Qty:


Replaced by #15-000806. EM-Tec single sided conductive copper SEM tape 6mm x 30m, not available anymore EM-Tec single sided conductive copper SEM tape 12mm x 30m
Product # Unit Price* Add to Quote / Cart
15-000112 each €20,00
Qty:


Replaced by #15-000806. EM-Tec single sided conductive copper SEM tape 6mm x 30m, not available anymore EM-Tec single sided conductive copper SEM tape 20mm x 30m
Product # Unit Price* Add to Quote / Cart
15-000120 each €28,00
Qty:


Replaced by #15-000806. EM-Tec single sided conductive copper SEM tape 6mm x 30m, not available anymore EM-Tec single sided conductive copper SEM tape 25mm x 30m
Product # Unit Price* Add to Quote / Cart
15-000125 each €33,00
Qty:


Replaced by #15-000806. EM-Tec single sided conductive copper SEM tape 6mm x 30m, not available anymore EM-Tec single sided conductive copper SEM tape 50mm x 30m
Product # Unit Price* Add to Quote / Cart
15-000150 each €59,00
Qty:



EM-Tec double sided conductive copper tape for SEM / FIB applications.
EM-Tec conductive copper SEM  tapes

The EM-Tec double sided conductive copper tape has a layer of conductive acrylic adhesive on both sides. Highly electrically conductive with a resistance through the adhesive < 1 Ohm. This double sided conductive copper tape has the same specifications as the 3M 1182 tape. Ideal for mounting samples directly on sample stubs whilst establishing a grounding path. Either to mount large samples on stubs or for smaller samples directly on the tape. Non-conductive samples surfaces should be coated to obtain best imaging results. Can be used for long term applications. Much better conductivity than carbon tape and carbon tabs. The soft copper tape can be easily cut to the required size. Available with 6, 12, 20, 25 and 50mm width and length of 33m. Both side are covered with siliconised backing paper which makes it easy to unwind the tape and cut to size before applying the tape. Remove the siliconised paper from one side first; apply copper tape and then remove the other backing paper. Tip: Try to minimise the exposed area of tape in the SEM to reduce outgassing

Specifications:
Tape material  Copper, 99.98% purity
Adhesive

Conductive acrylic adhesive (2x)

Copper tape thickness 0.035mm
Adhesive thickness  0.025 +/- 0.005 mm + 0.022 +/- 0.005 mm
Total tape thickness 0.082 +/- 0.01mm
Backing paper thickness 0.14mm (2x)
Resistance < 1 Ohm
Adhesive strength  10N / 25mm per side
Tape strength   45N / mm2
Use temperature range  -10 to +120 °C

Length

Width

33m

Choice of 6, 12 and 20mm

Core diameter  76mm (3”)


  Ordering Information for EM-Tec double sided conductive copper tapes for SEM / FIB applications

*Prices are without tax. Tax might be added in cart.

EM-Tec double sided conductive copper SEM tape 6mm x 33m EM-Tec double sided conductive copper SEM tape 6mm x 33m
Product # Unit Price* Add to Quote / Cart
15-000206 each €28,50
Qty:


EM-Tec double sided conductive copper SEM tape 12mm x 33m EM-Tec double sided conductive copper SEM tape 12mm x 33m
Product # Unit Price* Add to Quote / Cart
15-000212 each €49,50
Qty:


EM-Tec double sided conductive copper SEM tape 20mm x 33m EM-Tec double sided conductive copper SEM tape 20mm x 33m
Product # Unit Price* Add to Quote / Cart
15-000220 each €79,50
Qty:


EM-Tec double sided conductive copper SEM tape 25mm x 33m EM-Tec double sided conductive copper SEM tape 25mm x 33m
Product # Unit Price* Add to Quote / Cart
15-000225 each €97,50
Qty:


EM-Tec double sided conductive copper SEM tape 50mm x 33m EM-Tec double sided conductive copper SEM tape 50mm x 33m
Product # Unit Price* Add to Quote / Cart
15-000250 each €179,50
Qty:
