EM-Tec TEM Resolution, Calibration and Test Standards




        EM-Tec TS3 TEM combined test specimen standard
EM-Tec TS3 TEM combined test specimen standard

            EM-Tec TR1 TEM resolution standard fine gold particles

          EM-Tec TR1 TEM resolution standard fine gold particles


Introduction

Practical, high quality TEM resolution, calibration and test standards to optimise the performance of your TEM. Manufactured from specially selected materials to produce reliable and field proven TEM test standards which are commonly used. The TEM standards are using either copper, gold or aluminium square mesh grids. The TEM performance test, calibration or resolution check can be performed where the materials span the opening in the carbon film or between the grid bars.


Specifications of the EM-Tec TEM resolution, calibration and test standards

Prod #

Type

Description

Purpose

Support

Grid

33-001010

EM-Tec TS1

Perforated carbon film

Test

Grid

Cu/400m

33-001020

EM-Tec TS2

Evaporated Pt/Ir

Test

Holey C

Cu/300m

33-001030

EM-Tec TS3

Combined test specimen

Test

Holey C

Cu/300m

33-001050

EM-Tec TC2

Evaporated Al film

Calibration

Holey C

Cu/300m

33-001060

EM-Tec TC3

Cu foil on Al TEM grid

Calibration

Grid

Al/200m

33-001070

EM-Tec TR1

Fine gold particles

Resolution

Carbon

Cu/300m

33-001080

EM-Tec TR2

Graphitised carbon black

Resolution

Holey C

Cu/300m




Ordering Information for EM-Tec TEM Resolution, Calibration and Test Standards

*Prices are without tax. Tax might be added in cart.


    # 33-001010   EM-Tec TS1 TEM test standard perforated carbon film

EM-Tec TS1 TEM test standard perforated carbon film The perforated (holey) carbon film is used for TEM performance checks, especially astigmatism correction. Best used at magnifications up to 250,000x. The perforated carbon film is mounted on a 400 mesh Cu TEM grid.

EM-Tec TS1 TEM test standard perforated carbon film
Product # Unit Price* Add to Quote / Cart
33-001010 EM-Tec TS1 TEM test standard perforated carbon film
Qty:

each €14,70


    # 33-001020   EM-Tec TS2 TEM test standard evaporated Pt/Ir

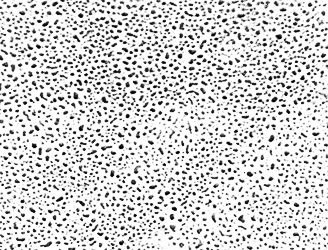

EM-Tec TS2 TEM test standard evaporated Pt/Ir This TEM test standard provides Platinum/Iridium particles evaporated on a holey carbon film. The holes in the carbon film are useful for focussing and astigmatism corrections. The small crystals of Pt/Ir provide excellent high contrast particles for resolution checks using the point separation test. Provided on a 300 mesh Cu TEM grid.

EM-Tec TS2 TEM test standard evaporated Pt/Ir
Product # Unit Price* Add to Quote / Cart
33-001020 EM-Tec TS2 TEM test standard evaporated Pt/Ir
Qty:

each €22,35


    # 33-001030   EM-Tec TS3 TEM combined test specimen standard

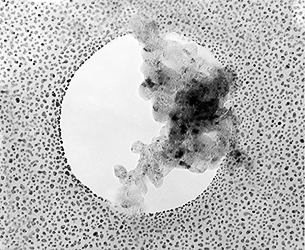

EM-Tec TS3 TEM combined test specimen standard The combined test specimen standard provides a 3 in 1 method for testing the performance of the TEM. The combined test specimen consists of graphitised carbon particles on a holey carbon which are shadowed with gold. Combines astigmatism test using perforated carbon film with resolution tests using graphitised carbon black and fine gold particles. The evaporated gold forms small polycrystalline islands in which lattice fringes can be resolved. The combined test specimen can also be used for contamination measurements by noting the carbon depositing rate within the holes of the gold film. Mounted on a 300 mesh copper TEM grid.

EM-Tec TS3 TEM combined test specimen standard
Product # Unit Price* Add to Quote / Cart
33-001030 EM-Tec TS3 TEM combined test specimen standard
Qty:

each €51,25


    # 33-001050   EM-Tec TC2 TEM calibration standard evaporated Al film

EM-Tec TC2 TEM calibration standard evaporated Al film The aluminium film of around 30nm is used for calculating the value of the camera length. The small Al crystals provide a well defined diffraction pattern. The Al film is evaporated on a holey carbon on a 400 mesh Cu TEM grid.

EM-Tec TC2 TEM calibration standard evaporated Al film
Product # Unit Price* Add to Quote / Cart
33-001050 EM-Tec TC2 TEM calibration standard evaporated Al film
Qty:

each €17,50


    # 33-001060   EM-Tec TC3 TEM EDX calibration standard thin Cu foil on Al grid

EM-Tec TC3 TEM EDX calibration standard thin Cu foil on Al grid A thin copper foil on an aluminium TEM grid provides well defined and separated lines of Al (K-line) and Cu (K- and L-lines) in an EDX spectrum. These lines can be used to calibrate the EDX spectrometer and to asses EDX detector efficiency. The carbon coated 60nm Cu foil is mounted on a 200 mesh aluminium TEM grid.

EM-Tec TC3 TEM EDX calibration standard thin Cu foil on Al grid
Product # Unit Price* Add to Quote / Cart
33-001060 EM-Tec TC3 TEM EDX calibration standard Cu foil on Al grid
Qty:

each €31,25


    # 33-001070   EM-Tec TR1 TEM resolution standard fine gold particles

EM-Tec TR1 TEM resolution standard fine gold particles The finely dispersed thin gold particles on a carbon film provide an excellent high resolution TEM standard. The gold particle size distribution is normally in the 2nm to 9nm range. Image quality, magnification and instrument stability are readily determined. For resolution assessment, this standard offers a choice of crystalline orientation on static or low tilt stages. The thickness of the crystals can be calculated form the projected shape of the gold crystal. The background noise from the structure of the carbon support film helps in determining the operating transfer function.

EM-Tec TR1 TEM resolution standard fine gold particles
Product # Unit Price* Add to Quote / Cart
33-001070 EM-Tec TR1 TEM resolution standard fine gold particles
Qty:

each €57,50


    # 33-001080   EM-Tec TR2 TEM resolution standard graphitised carbon black

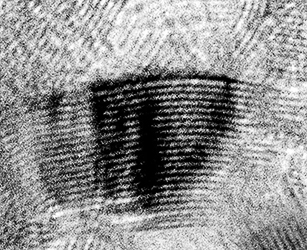

EM-Tec TR2 TEM resolution standard graphitised carbon black Graphitised carbon black provides a stable resolution standard for TEM resolution testing. The graphitised carbon black particles exhibit lattice planes following the contours of the particles. Lattice plane distance is 0.34nm. Supplied on a holey carbon film on a copper TEM grid

EM-Tec TR2 TEM resolution standard graphitised carbon black
Product # Unit Price* Add to Quote / Cart
33-001080 EM-Tec TR2 TEM resolution standard graphitised carbon black
Qty:

each €20,95
