Nano-Tec gold coated microscope slide and coverslips
Gold coated microscope slides and coverslips with 50, 10, 100 and 500 nm gold film thickness


Introduction

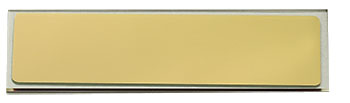

Nano-Tec gold coated microscope slides
Nano-Tec gold coated microscope coverslips
Nano-Tec gold coated microscope coverslips

The Nano-Tec gold coated microscope slides and coverslips are intended for microscopy, AFM / SPM, nanotechnology and biotechnology applications. They are also useful as opaque light microscopy supports or gold coated substrates for experiments. The Borofloat 33 microscope slides and coverslips are pre-cleaned before coating and coated with Au over an adhesion layer of Cr. Both Cr and Au are deposited in a dedicated high vacuum deposition system with electron beam evaporation sources. The standard gold coating has a thickness of 50nm, additionally available coating thicknesses are: 10nm, 100nm and 500nm Au. The gold coating is not atomically flat; there are height differences in the nm range. The Nano-Tec gold coated microscope slides and coverslips are autoclavable.

Specifications of the Nano-Tec gold coated slides:

Product number

10-AU8631

10-AU8632

10-AU8633

10-AU8634

Microscope slide size

75 x 25 x 1mm

Microscope slide glass

Borofloat 33 – borosilicate glass

Adhesion film material

                                                            Chromium, 99.98%

Adhesion film thickness

5nm

2nm

5nm

7.5nm

Gold film thickness

50nm

10nm

100nm

500nm

Gold film purity

99,999%

Roughness

Several nm

Packaging size

Each or Pkg/10

Pkg/10

Each or Pkg/10

Pkg/10


Specifications of the Nano-Tec gold coated coverslips:

Product number

10-AU8615

10-AU8616

10-AU8617

10-AU8618

10-AU8622

10-AU8623

10-AU8624

10-AU8625

Coverslip size

Ø15 x 0.15 mm

22 x 22x 0.2 mm

Coverslip glass

Borofloat 33 – borosilicate glass

Borofloat 33 – borosilicate glass

Adhesion film material

Chromium, 99.98%

Chromium, 99.98%

Adhesion film thickness

5nm

2nm

5nm

7.5nm

5nm

2nm

5nm

7.5nm

Gold film thickness

50nm

10nm

100nm

500nm

50nm

10nm

100nm

500nm

Gold film purity

99,999%

99,999%

Roughness

Several nm

Several nm

Packaging size

Pkg/2 or Pkg/40

Pkg/40

Pkg/40

Pkg/40

Pkg/2 or Pkg/20

Pkg/20

Pkg/20

Pkg/20


Ordering information for Nano-Tec gold coated microscope slides

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

Nano-Tec gold coated microscope slide, 75x25x1 mm, 50nm Au Nano-Tec gold coated microscope slide, 75x25x1 mm, 50nm Au
Product # Unit Price* Add to Quote / Order
10-AU8631-1 Nano-Tec gold coated microscope slide, 75x25x1 mm, 50nm Au
Qty:

each €75,00
10-AU8631-10 Nano-Tec gold coated microscope slide, 75x25x1 mm, 50nm Au
Qty:

Pkg/10 €695,00



Nano-Tec gold coated microscope slide, 75x25x1 mm, 10nm Au Nano-Tec gold coated microscope slide, 75x25x1 mm, 10nm Au
Product # Unit Price* Add to Quote / Order
10-AU8632-10 Nano-Tec gold coated microscope slide, 75x25x1 mm, 10nm Au
Qty:

pkg/10 €575,00



Nano-Tec gold coated microscope slide, 75x25x1 mm, 100nm Au Nano-Tec gold coated microscope slide, 75x25x1 mm, 100nm Au
Product # Unit Price* Add to Quote / Order
10-AU8633-1 Nano-Tec gold coated microscope slide, 75x25x1 mm, 100nm Au
Qty:

Each €115,00
10-AU8633-10 Nano-Tec gold coated microscope slide, 75x25x1 mm, 100nm Au
Qty:

pkg/10 €845,00



Nano-Tec gold coated microscope slide, 75x25x1 mm, 500nm Au Nano-Tec gold coated microscope slide, 75x25x1 mm, 500nm Au
Product # Unit Price* Add to Quote / Order
10-AU8634-10 Nano-Tec gold coated microscope slide, 75x25x1 mm, 500nm Au
Qty:

pkg/10 €1650,00



Ordering information for Nano-Tec gold coated coverslips

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 50 nm Au Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 50 nm Au
Product # Unit Price* Add to Quote / Order
10-AU8615-2 Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 50nm Au
Qty:

Pkg/2 €94,00
10-AU8615-40 Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 50nm Au
Qty:

Pkg/40 €960,00



Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 10 nm Au Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 10 nm Au
Product # Unit Price* Add to Quote / Order
10-AU8616-40 Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 10nm Au
Qty:

Pkg/40 €816,00



Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 100 nm Au Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 100 nm Au
Product # Unit Price* Add to Quote / Order
10-AU8617-40 Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 100nm Au
Qty:

Pkg/40 €995,00



Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 500 nm Au Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 500 nm Au
Product # Unit Price* Add to Quote / Order
10-AU8618-40 Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 500nm Au
Qty:

Pkg/40 €1790,00



Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 50 nm Au Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 50 nm Au
Product # Unit Price* Add to Quote / Order
10-AU8622-2 Nano-Tec gold coated coverslip, 22 x 22 x 0.2 mm, 50nm Au
Qty:

Pkg/2 €94,00
10-AU8622-20 Nano-Tec gold coated coverslip, 22 x 22 x 0.2 mm, 50nm Au
Qty:

Pkg/20 €845,00



Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 10 nm Au Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 10 nm Au
Product # Unit Price* Add to Quote / Order
10-AU8623-20 Nano-Tec gold coated coverslip, 22 x 22 x 0.2 mm, 10nm Au
Qty:

Pkg/20 €700,00



Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 100 nm Au Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 100 nm Au
Product # Unit Price* Add to Quote / Order
10-AU8624-20 Nano-Tec gold coated coverslip, 22 x22x 0.2 mm, 100nm Au
Qty:

Pkg/20 €995,00



Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 500 nm Au Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 500 nm Au
Product # Unit Price* Add to Quote / Order
10-AU8625-20 Nano-Tec gold coated coverslip, 22 x 22 x 0.2 mm, 50nm Au
Qty:

Pkg/20 €1850,00
