EM-Tec pin stub storage boxes
High capacity, high density, economical pin stub storage boxes



Introduction
                          a few examples

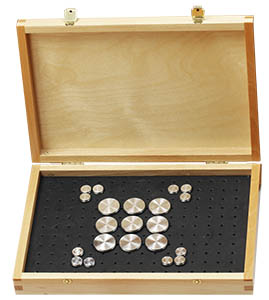

EM-Tec SB176 large capacity wooden box for 176 standard 12.7mm pin stubs
#13-090176 EM-Tec SB176 large high capacity wooden
box for 176 standard 12.7mm pin stubs

             EM-Tec SB28 medium size clear styrene box for 28 standard 12.7mm pin stubs
#13-090028 EM-Tec SB28 medium size clear
styrene box for 28 standard 12.7mm pin stubs


The EM-Tec pin stub storage boxes and storage tubes are designed for storing samples on either the standard pin stub or the shorter Zeiss pin stubs. They can be used for sample handling, long term storage, archiving and even for storing pin based sample holders. The boxes all comprise a custom high density closed cell foam sheet with holes for the pin stubs. The high density closed cell foam material doesn't crumble and is elastic enough to allow removing and replacing pin stubs at the same position. The large capacity storage boxes are a more economical and present a 40-50% cost reduction when storing large numbers of pin stubs. There is a choice seven small, medium and large capacity EM-Tec pin stub storage boxes and the single pin stub storage or shipping tube:

.

Specifications of the EM-Tec high capacity pin stub storage boxes

Product #

Type

Material

Pin stubs capacity

Inside dimensions

Outside dimensions

13-090001

SB1

Polystyrene / Brown LDPE

1 x Ø12.7 or Ø19mm

Ø21x30mm               DxH

Ø24x52mm

13-090002

SB2

Polystyrene / Blue LDPE

1 x Ø12.7 or Ø19mm

Ø21x30mm               DxH

Ø24x52mm

13-090003

SB3

Polystyrene /  Blue LDPE

1 x Ø125.4 or Ø32mm

Ø34x28mm               DxH

Ø37x52mm

13-090077

SB77

Wood / NBR

77 x Ø12.7mm

169x118x25.5mm    LxDxH

189x138x46mm

13-090176

SB176

Wood / NBR

176 x Ø12.7mm

256x169x25.5mm    LxDxH

276x189x46mm

13-090004

SB4

Polystyrene / LDPE

4 x Ø12.7mm

72x30x19mm           WxDxH

75x40x22mm

13-090008

SB8

Polystyrene / LDPE

8 x Ø12.7mm

113x43x28mm         LxDxH

116x55x32mm

13-095012

SC12

Polystyrene / LDPE

12 x Ø12.7mm

89x65x25mm           WxDxH

100x69x29mm

13-090028

SB28

Polystyrene / NBR

28 x Ø12.7mm

116x72x16.5mm      LxDxH

120x84x36mm

13-090153

SB153

Polystyrene / NBR

153 x Ø12.7mm

264x148x34.5mm    LxDxH

275x160x57mm

13-090010

EM-Tec SB10

White cardboard

10 x Ø12.7mm

38x38x90mm           LxDxH

37x37x89mm



Ordering Information

*Prices are without tax. Tax might be added in cart.


    # 13-090001   EM-Tec SB1 single pin mount storage & transport tube for a single 12.7 or 19mm pin stub

EM-Tec SB1 single pin mount storage & transport tube  for a single  12.7 or  19mm pin stub EM-Tec SB1 single pin stub storage tube is ideal for storing or transporting a single pin stub. Protects the SEM specimen on the pin stub from cross contamination. Capacity is a single pin stub with 12.7 or 19mm diameter. Designed for 3.2mm pins with various lengths (6, 8, 9.5 and 14mm) The pin stub is held firmly in the brown LDPE cap (base) of the clear polystyrene tub. Maximum specimen height is approx. 20-25mm.

EM-Tec SB1 single pin mount storage & transport tube for a single 12.7 or 19mm pin stub
Product # Unit Price* Add to Quote / Cart
13-090001-10 EM-Tec SB1 single pin mount storage & transport tube for a single 12.7 or 19mm pin stub
Qty:

pkg/10 €3,95
13-090001-100 EM-Tec SB1 single pin mount storage & transport tube for a single 12.7 or 19mm pin stub
Qty:

pkg/100 €37,50
13-090001-1000 EM-Tec SB1 single pin mount storage & transport tube for a single 12.7 or 19mm pin stub
Qty:

pkg/1000 €355,00


    # 13-090002   EM-Tec SB2 heavy-duty single pin mount storage & transport tube for a single 12.7 or 19mm pin stub

EM-Tec SB2 heavy-duty single pin mount storage & transport tube for a single  12.7 or  19mm pin stub EM-Tec SB2 heavy-duty large single pin stub storage tube is ideal for storing, shipping or transporting a large single pin stub. Protects the SEM specimen on the pin stub from cross contamination. Capacity is a single pin stub with 12.7 or 19mm diameter. Designed for 3.2mm pins with various lengths (6, 8, 9.5 and 14mm) The pin stub is held firmly in the blue LDPE cap (base) of the clear polystyrene tub. Maximum specimen height is approx. 18-23mm.

EM-Tec SB2 heavy-duty single pin mount storage & transport tube for a single 12.7 or 19mm pin stub
Product # Unit Price* Add to Quote / Cart
13-090002-10 EM-Tec SB2 heavy-duty single pin mount storage & transport tube for a single 12.7 or 19mm pin stub
Qty:

pkg/10 €4,95
13-090002-100 EM-Tec SB2 heavy-duty single pin mount storage & transport tube for a single 12.7 or 19mm pin stub
Qty:

pkg/100 €46,95

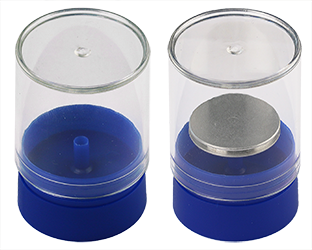

    # 13-090003   EM-Tec SB3 heavy-duty large single pin mount storage & transport tube for a single 25.4 or 32mm pin stub

EM-Tec SB3 heavy-duty large single pin mount storage & transport tube  for a single  25.4 or  32mm pin stub EM-Tec SB3 heavy-duty large single pin stub storage tube is ideal for storing, shipping or transporting a large single pin stub. Protects the SEM specimen on the pin stub from cross contamination. Capacity is a single pin stub with 25.4 or 32mm diameter. Designed for 3.2mm pins with various lengths (6, 8, 9.5 and 14mm) The pin stub is held firmly in the blue LDPE cap (base) of the clear polystyrene tub. Maximum specimen height is approx. 18-23mm.

EM-Tec SB3 heavy-duty large single pin mount storage & transport tube for a single 25.4 or 32mm pin stub
Product # Unit Price* Add to Quote / Cart
13-090003-10 EM-Tec SB3 heavy-duty large single pin mount storage & transport tube for a single 25.4 or 32mm pin stub
Qty:

pkg/10 €12,95
13-090003-100 EM-Tec SB3 heavy-duty large single pin mount storage & transport tube for a single 25.4 or 32mm pin stub
Qty:

pkg/100 €112,50


    # 13-090077   EM-Tec SB77 high capacity wooden box for 77 standard 12.7mm SEM pin stubs

EM-Tec SB77 high capacity wooden box for 77 standard 12.7mm SEM pin stubs EM-Tec SB77 wooden box with 77 (7x11) storage positions for standard 12.7mm pin stubs. 20 storage positions for 25.4mm pin stubs. Pin stubs up to 100mm can be stored in this box. Made from beech and birch wood with a solid clear coating on the inside and outside. Includes two brass plated hinges and a single clasp. Outside dimensions are 189 x 138 x 46mm; 25.5mm inside clearance which leaves a maximum sample height of 22mm on the pin stubs. Light sensitive specimens are protected when the box remains closed. Medium size archiving box or for protecting valuable sample or calibration standards.

EM-Tec SB77 high capacity wooden box for 77 standard 12.7mm SEM pin stubs
Product # Unit Price* Add to Quote / Cart
13-090077 EM-Tec SB77 high capacity wooden box for 77 standard 12.7mm SEM pin stubs
Qty:

each €42,50


    # 13-090176   EM-Tec SB176 high capacity wooden box for 176 standard 12.7mm SEM pin stubs

EM-Tec SB176 high capacity wooden  box for 176 standard 12.7mm SEM pin stubs EM-Tec SB176 wooden box with 176 (11x17) storage positions for standard 12.7mm pin stubs. Storage capacity for 40 of the 25.4mm pin stubs. Pin stubs up to 100mm can be stored in this box. Made from beech and birch wood with a solid clear coating on the outside and inside. Includes two brass plated hinges and two clasps. Outside dimensions are 276 x 189 x 46mm; 25.5mm inside clearance which leaves a maximum sample height of 22mm on the pin stubs. Light sensitive specimens are protected when the box remains closed. The is the ideal long term storage box or to protect valuable samples.

EM-Tec SB176 high capacity wooden box for 176 standard 12.7mm SEM pin stubs
Product # Unit Price* Add to Quote / Cart
13-090176 EM-Tec SB176 high capacity wooden box for 176 standard 12.7mm SEM pin stubs
Qty:

each €54,50


    # 13-090004   EM-Tec SB4 small size clear styrene box for 4 standard 12.7mm SEM pin stubs

EM-Tec SB4 small size clear styrene box for 4 standard 12.7mm SEM pin stubs EM-Tec SB4 clear styrene box for storing up to four standard 12.7mm (1/2) pin stubs. LDPE insert holds the pin. Insert comprises a central post to prevent sample touching the lid. Outside dimensions are 75x40x22mm, with a maximum sample height of 6mm on the pin stubs.

EM-Tec SB4 small size clear styrene box for 4 standard 12.7mm SEM pin stubs
Product # Unit Price* Add to Quote / Cart
13-090004 EM-Tec SB4 small size clear styrene box for 4 standard 12.7mm SEM pin stubs
Qty:

each €3,95


    # 13-090008   EM-Tec SB8 small size clear styrene box for 8 standard 12.7mm SEM pin stubs

EM-Tec SB8 small size clear styrene box for 8 standard 12.7mm SEM pin stubs EM-Tec SB8 clear/blue styrene box with 8 storage positions for standard 12.7mm pin stubs. Made from polystyrene with clear lid and blue base with LDPE insert with posts. Outside dimensions are 116 x 55 x 32mm, 13mm clearance which leaves a maximum sample height of 10mm on the pin stubs.

EM-Tec SB8 small size clear styrene box for 8 standard 12.7mm SEM pin stubs
Product # Unit Price* Add to Quote / Cart
13-090008 EM-Tec SB8 small size clear styrene box for 8 standard 12.7mm SEM pin stubs
Qty:

each €6,75


    # 13-090028   EM-Tec SB28 medium size clear styrene box for 28 standard 12.7mm SEM pin stubs

EM-Tec SB28 medium size clear styrene box for 28 standard 12.7mm SEM pin stubs EM-Tec SB28 clear styrene box with 28 storage positions for standard 12.7mm pin stubs. Pin stubs up to 50mm can be stored in this box. Made from clear polystyrene with two hinges and lock. Outside dimensions are 120 x 84 x 36mm; 17mm inside clearance, which permits a maximum sample height of 13.5mm. Full visibility of samples in this clear styrene box. Low cost pin stub storage box; ideal for short term storage and handling.

EM-Tec SB28 medium size clear styrene box for 28 standard 12.7mm SEM pin stubs
Product # Unit Price* Add to Quote / Cart
13-090028 EM-Tec SB28 medium size clear styrene box for 28 standard 12.7mm SEM pin stubs
Qty:

each €7,95


    # 13-090153   EM-Tec SB153 high capacity clear styrene box for 153 standard 12.7mm SEM pin stubs

EM-Tec SB153 high capacity clear styrene box for 153 standard 12.7mm SEM pin stubs EM-Tec SB153 clear styrene box with 153 (9x17) storage positions for standard 12.7mm pin stubs. Storage capacity for 40 of the 25.4mm pin stubs. Pin stubs up to 100mm can be stored in this heavy duty box. Made from clear polystyrene with two brass plated hinges and snaplock lid. Outside dimensions are 275 x 160 x 57mm. The 34.5mm inside clearance leaves a maximum sample height of 31mm on the pin stubs. Full visibility of samples or holders through the lid. This clear and heavy duty high box is ideal for storing pin stub based SEM sample holders and larger specimens. Cost for storing pin stubs in this large capacity box is 40-50% lower, compared to pin stub storage boxes holding only 14 or 18 pin stubs.

EM-Tec SB153 high capacity clear styrene box for 153 standard 12.7mm SEM pin stubs
Product # Unit Price* Add to Quote / Cart
13-090153 EM-Tec SB153 high capacity clear styrene box for 153 standard 12.7mm SEM pin stubs
Qty:

each €44,50


    # 13-095012   EM-Tec SC12 clear styrene storage box for 12x 9.5mm JEOL/12.2mm JEOL or 12 pin stubs

EM-Tec SC12 clear styrene storage box for 12x 9.5mm JEOL/12.2mm JEOL or 12 pin stubs EM-Tec SC12 clear combi styrene box with 12 storage positions for standard 12.7mm stubs. The stubs are held in the holes of the LDPE insert. Post in the middle of the insert keeps the samples clear of the lid. Suitable for both the 5 and 10mm height and angled cylinder stubs. Outside dimensions are 100x69x29mm. Maximum sample height is up to 10mm, depending on pin stub height. Alternatively, the EM-Tec SC12 storage box can also be used for the 9.5mm and 12.2mm JEOL cylinder stubs

EM-Tec SC12 clear styrene storage box for 12x 9.5mm JEOL/12.2mm JEOL or 12 pin stubs
Product # Unit Price* Add to Quote / Cart
13-095012 EM-Tec SC12 clear styrene storage box for 12x 9.5mm JEOL/12.2mm JEOL or 12 pin stubs
Qty:

each €6,45


    # 13-090010   EM-Tec SB10 low cost white cardboard storage box for 10 standard 12.7mm SEM pin stubs

EM-Tec SB10 low cost white cardboard storage box for 10 standard 12.7mm SEM pin stubs EM-Tec SB10 white cardboard storage boxes for 12.7mm or 25.4mm pin stubs. These sturdy cardboard boxes offer a cost-efficient and compact storage solution for both standard pin stubs and the short Zeiss pin stubs. Made from clean 350g/m2 white cardboard. The insert is secured in the box to prevent from moving upwards. Storage capacity for 10 12.7mm or 2 of the 25.4mm pin stubs of the 25.4mm pin stubs. Box size is 38x38x90mm (L x D x H); inside clearance is 20mm which leaves a maximum sample height of 17mm on the pin stubs. Ideal for educational setting, storage of non-critical samples, temporary storage or large volume/low cost storage. The boxes are supplied flat in packs of 10, 50 and 100.

EM-Tec SB10 low cost white cardboard storage box for 10 standard 12.7mm SEM pin stubs
Product # Unit Price* Add to Quote / Cart
13-090010-10 EM-Tec SB10 low cost white cardboard storage box for 10 standard 12.7mm SEM pin stubs
Qty:

pkg/10 €9,95
13-090010-50 EM-Tec SB10 low cost white cardboard storage box for 10 standard 12.7mm SEM pin stubs
Qty:

pkg/50 €38,50
13-090010-100 EM-Tec SB10 low cost white cardboard storage box for 10 standard 12.7mm SEM pin stubs
Qty:

pkg/100 €69,50
