EM-Tec MCS series magnification calibration standards
ideal SEM calibration standard with 2.5mm to 1 Ám or 100nm patterns


                 31-C32000   EM-Tec MCS-0.1CF certified calibration standard, 2.5mm to 100nm
                 31-C32000 EM-Tec MCS-0.1CF certified calibration standard
              2.5mm to 100nm
               order info

Introduction

The EM-Tec MCS series magnification calibration standards are unique, cost effective, wide range SEM calibration standards. These fullly featured practical calibration standards can be used for magnification calibration or critical dimension measurements in table top SEM, standard SEM, FESEM, FIB, Auger, SIMS and reflected light microscope systems.

Two types of calibration ranges for the Em-Tec MCS calibration standards are offered, both standard with certificates traceability or optionally with an individual certificate of calibration:

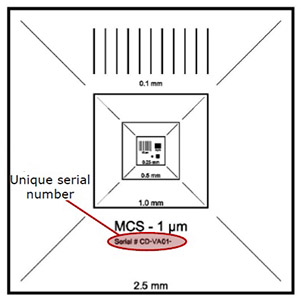

  • EM-Tec MCS-1 with a scale ranging from 2.5mm to 1µm; ideal for table top and compact SEMs, covers 10x to 20,000x magnifications.
    We offer a traceable and a certified version

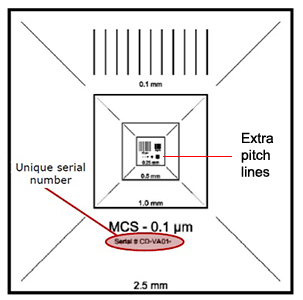

  • EM-Tec MCS-0.1 with a scale ranging from 2.5mm down to 100nm; ideal for SEM, FESEM and FIB systems, covers 10x to 200,000 magnifications.
    We offer a traceable and a certified version

The features on the EM-Tec MCS series are made using state of the art MEMS manufacturing techniques with high contrast chromium deposited lines for for the larger features and gold over chromium for the smaller features below 2.5µm The gold deposited ensure optimum signal to noise ratio for calibration purposes. Advantages of the EM-Tec MCS series are:

  • unprecedented precision over the full calibration range
  • all features in one single ultraflat plane
  • metal on silicon with excellent signal to noise ratio
  • wider range of features to accurately calibrate low, medium and high magnification ranges
  • compatible with both SE and BSE imaging
  • fully conductive materials
  • easy to convert feature sizes
  • can be cleaned with plasma cleaning
  • all NIST traceable or optionally certified

The EM-Tec MCS-0.1 calibration standard is an excellent replacement for the discontinued SIRA calibration standard (which was using only 0.51 and 0.463µm features) with added advantages. Compatible feature sizes for the SIRA standard are 50µm (5x10µm) and 0.5µm (500nm).



Specifications for the EM-Tec MCS series calibration standards
Substrate  525µm thick boron doped ultra-flat wafer with <100> orientation
Conductive  Excellent; 5-10 Ohm resistivity
Pattern size  2.5 x 2.5mm
Chip size  3.5 x 3.5mm (unmounted)
Features MCS-1 2.5, 1.0, and 0.5mm
250, 100, 10, 5, 2.5 and 1µm

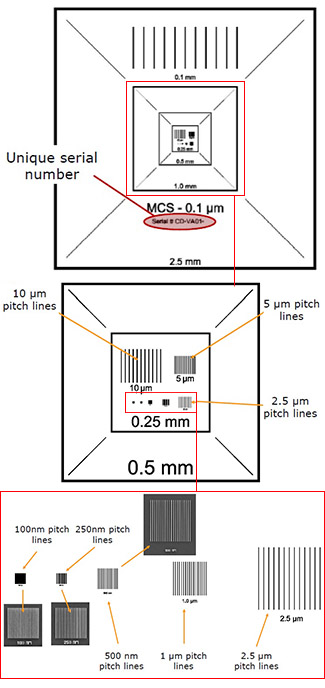

Features MCS-0.1 with additional 500, 250 and 100nm
Features material  50nm Chromium for feature sizes 2.5mm to 2.5µm
50nm Gold over 20nm Chromium for size 1µm to 100nm
Traceable uniformity 0.2% or better
Certified uniformity 0.03%
Traceable uncertainty 0.7% or better
Certified uncertainty 0.09%
Traceability  Wafer level NIST traceability; average date measured on each production wafer
Certified  Optional; each certified EM-Tec MCS standard is individually
calibrated against a NIST measured standard
Application SEM, FESEM, FIB, Auger, SIMS and reflected light microscopy
Identification Product ID with serial number etched
Mounting Unmounted, mounting optionally available
Supplied  Supplied in a Gel-Pak box

Full list of available specimen mounts for calibration standard and test specimens
Technical Support Bulletin: EM-Tec MCS-1 & MCS-0.1 Magnification Calibration Standards


Ordering Information for EM-Tec MCS series magnification calibration standards

*Prices are without tax. Tax might be added in cart.


    # 31-T31000   EM-Tec MCS-1TR traceable magnification calibration standard, 2.5mm to 1Ám

EM-Tec MCS-1TR traceable magnification calibration standard, 2.5mm to 1Ám The EM-Tec MCS-1 calibration standard has been developed to accurately calibrate table top SEM, reflected light microscopes, compact SEMs and the low to medium magnification range of standard SEMs. Suitable for magnifications from 10x to 20,000x. Bright chromium deposited features on ultra-flat conductive silicon. The feature sizes for the MCS-1 are:
2.5mm, 1.0mm, 0.5mm, 250Ám, 100Ám, 10Ám, 5Ám, 2.5Ám and 1Ám.
The 31-T31000 EM-Tec MCS-1TR is traceable on the wafer level against a NIST measured calibration standard. Offered unmounted or mounted on the most popular SEM stubs. Example of wafer level certificate of traceability for the EM-Tec MCS-1TR magnification calibration standard, 2.5mm to 1Ám.
We also offer a individually certified version.

(More images)

Full list of available specimen mounts for calibration standard and test specimens

EM-Tec MCS-1TR traceable magnification calibration standard, 2.5mm to 1Ám
Product # Unit Price* Add to Quote / Cart
31-T31000-U EM-Tec MCS-1TR traceable calibration standard, 2.5mm to 1Ám, unmounted
Qty:

each €69,50
31-T31000-1 EM-Tec MCS-1TR traceable calibration standard, 2.5mm to 1Ám, mounted on standard 12.7mm pin stub
Qty:

each €79,50
31-T31000-2 EM-Tec MCS-1TR traceable calibration standard, 2.5mm to 1Ám, mounted on Zeiss 12.7mm pin stub
Qty:

each €79,50
31-T31000-6 EM-Tec MCS-1TR traceable calibration standard, 2.5mm to 1Ám, mounted on 12.2mm JEOL stub
Qty:

each €94,50
31-T31000-8 EM-Tec MCS-1TR traceable calibration standard, 2.5mm to 1Ám, mounted on 15mm Hitachi stub
Qty:

each €79,50
31-T31000-10 EM-Tec MCS-1TR traceable calibration standard, 2.5mm to 1Ám, mounted on custom stub
Qty:

each €169,50


    # 31-C31000   EM-Tec MCS-1CF certified magnification calibration standard, 2.5mm to 1Ám

EM-Tec MCS-1CF certified magnification calibration standard, 2.5mm to 1Ám The EM-Tec MCS-1 calibration standard has been developed to accurately calibrate table top SEM, reflected light microscopes, compact SEMs and the low to medium magnification range of standard SEMs. Suitable for magnifications from 10x to 20,000x. Bright chromium deposited features on ultra-flat conductive silicon. The feature sizes for the MCS-1 are:
2.5mm, 1.0mm, 0.5mm, 250Ám, 100Ám, 10Ám, 5Ám, 2.5Ám and 1Ám.
The 31-C31000 EM-Tec MCS-1CF is individually certified utilizing a NIST measured calibration standard. Offered unmounted or mounted on the most popular SEM stubs. Example of individual certificate of calibration for the EM-Tec MCS-1CF certified magnification calibration standard, 2.5mm to 1Ám.

(More images)

Full list of available specimen mounts for calibration standard and test specimens

EM-Tec MCS-1CF certified magnification calibration standard, 2.5mm to 1Ám
Product # Unit Price* Add to Quote / Cart
31-C31000-U EM-Tec MCS-1CF certified calibration standard, 2.5mm to 1Ám, unmounted
Qty:

each €595,00
31-C31000-1 EM-Tec MCS-1CF certified calibration standard, 2.5mm to 1Ám, mounted on standard 12.7mm pin stub
Qty:

each €605,00
31-C31000-2 EM-Tec MCS-1CF certified calibration standard, 2.5mm to 1Ám, mounted on Zeiss 12.7mm pin stub
Qty:

each €605,00
31-C31000-6 EM-Tec MCS-1CF certified calibration standard, 2.5mm to 1Ám, mounted on 12.2mm JEOL stub
Qty:

each €620,00
31-C31000-8 EM-Tec MCS-1CF certified calibration standard, 2.5mm to 1Ám, mounted on 15mm Hitachi stub
Qty:

each €605,00
31-C31000-10 EM-Tec MCS-1CF certified calibration standard, 2.5mm to 1Ám, mounted on custom stub
Qty:

each €695,00


    # 31-T32000   EM-Tec MCS-0.1TR traceable magnification calibration standard, 2.5mm to 100nm

EM-Tec MCS-0.1TR traceable magnification calibration standard, 2.5mm to 100nm The EM-Tec MCS-0.1 calibration standard has been developed to accurately calibrate SEM, FESEM, FIB, Auger, SIMS and reflected light microscope systems. Suitable for magnifications from 10x to 200,000x. Bright chromium deposited features on ultra-flat conductive silicon for calibration down to 2.5Ám and gold over chromium for 1Ám to 100nm calibration features. The metal lines on silicon exhibit excellent signal with high contrast. The feature sizes for the MCS-0.1 are:
2.5mm, 1.0mm, 0.5mm, 250Ám, 100Ám, 10Ám, 5Ám, 2.5Ám, 1Ám, 500nm, 250nm and 100nm. The 31-T32000 EM-Tec MCS-0.1TR is NIST traceable on the wafer level against a NIST calibrated standard. Offered unmounted or mounted on the most popular SEM stubs. Good alternative for the discontinued SIRA calibration standard. Example of wafer level certificate of traceability for the EM-Tec MCS-0.1TR magnification calibration standard, 2.5mm to 100nm.

(More images)

Full list of available specimen mounts for calibration standard and test specimens

EM-Tec MCS-0.1TR traceable magnification calibration standard, 2.5mm to 100nm
Product # Unit Price* Add to Quote / Cart
31-T32000-U EM-Tec MCS-0.1TR traceable calibration standard, 2.5mm to 100nm, unmounted
Qty:

each €374,50
31-T32000-1 EM-Tec MCS-0.1TR traceable calibration standard, 2.5mm to 100nm, mounted on standard 12.7mm pin stub
Qty:

each €384,50
31-T32000-2 EM-Tec MCS-0.1TR traceable calibration standard, 2.5mm to 100nm, mounted on Zeiss 12.7mm pin stub
Qty:

each €384,50
31-T32000-6 EM-Tec MCS-0.1TR traceable calibration standard, 2.5mm to 100nm, mounted on 12.2mm JEOL stub
Qty:

each €399,50
31-T32000-8 EM-Tec MCS-0.1TR traceable calibration standard, 2.5mm to 100nm, mounted on 15mm Hitachi stub
Qty:

each €384,50
31-T32000-10 EM-Tec MCS-0.1TR traceable calibration standard, 2.5mm to 100nm, mounted on custom stub
Qty:

each €474,50


    # 31-C32000   EM-Tec MCS-0.1CF certified magnification calibration standard, 2.5mm to 100nm

EM-Tec MCS-0.1CF certified magnification calibration standard, 2.5mm to 100nm The EM-Tec MCS-0.1 calibration standard has been developed to most accurately calibrate SEM, FESEM, FIB, Auger, SIMS and reflected light microscope systems. Suitable for magnifications from 10x to 200,000x. Brigth chromium deposited features on ultra-flat conductive silicon for calibration down to 2.5Ám and gold over chromium for 1Ám to 100nm calibration features. The metal lines on silicon exhibit excellent signal with high contrast. The feature sizes for the MCS-0.1 are:
2.5mm, 1.0mm, 0.5mm, 250Ám, 100Ám, 10Ám, 5Ám, 2.5Ám, 1Ám, 500nm, 250nm and 100nm. The 31-C32000 EM-Tec MCS-0.1CF is individually certified utilizing a NIST calibrated standard. Offered unmounted or mounted on the most popular SEM stubs. Excellent alternative for the discontinued SIRA calibration standard with easier to use compatible feature sizes. Example of individual certificate of calibration for the EM-Tec MCS-0.1CF certified magnification calibration standard, 2.5mm to 100nm

Excellent alternative for the discontinued SIRA calibration standard with easier to use compatible feature sizes, see TSB 31-C32000 EM-Tec MCS-0.1CF replacement for SIRA calibration standard

(More images)

Full list of available specimen mounts for calibration standard and test specimens

EM-Tec MCS-0.1CF certified magnification calibration standard, 2.5mm to 100nm
Product # Unit Price* Add to Quote / Cart
31-C32000-U EM-Tec MCS-0.1CF certified calibration standard, 2.5mm to 100nm, unmounted
Qty:

each €875,00
31-C32000-1 EM-Tec MCS-0.1CF certified calibration standard, 2.5mm to 100nm, mounted on standard 12.7mm pin stub
Qty:

each €885,00
31-C32000-2 EM-Tec MCS-0.1CF certified calibration standard, 2.5mm to 100nm, mounted on Zeiss 12.7mm pin stub
Qty:

each €885,00
31-C32000-6 EM-Tec MCS-0.1CF certified calibration standard, 2.5mm to 100nm, mounted on 12.2mm JEOL stub
Qty:

each €900,00
31-C32000-8 EM-Tec MCS-0.1CF certified calibration standard, 2.5mm to 100nm, mounted on 15mm Hitachi stub
Qty:

each €885,00
31-C32000-10 EM-Tec MCS-0.1CF certified calibration standard, 2.5mm to 100nm, mounted on custom stub
Qty:

each €975,00
