EM-Tec sample stubs and sample holders for Phenom desk top SEMs



Introduction

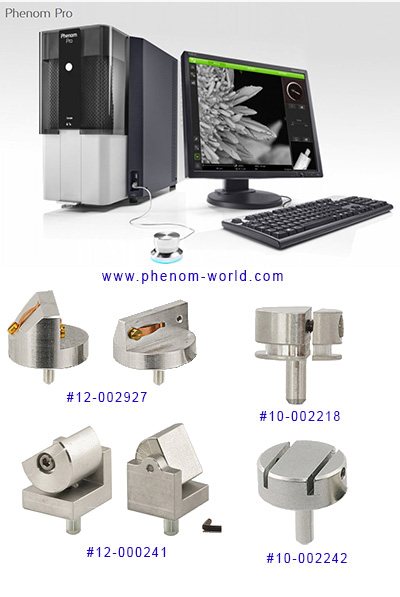

                                             A few examples
;     EM-Tec sample stubs and sample holders for Phenom table top SEMs EM-Tec PS7 mini pin stub dual slot vise clamp, 2x1mm, Ø15x6mm, pin EM-Tec TV12 mini variable 0-90° angle tilt sample holder 11x12mm, pin EM-Tec PS6 mini split pin stub vise clamp 0-6mm, Ø12.7x7.2mm, pin EM-Tec S-Clip sample holder with 2xS-Clips 45°/90° on Ø25.4mm pin stub link to Phenom world website

The EM-Tec sample holders and sample stubs offered on these pages are fully compatible with the Phenom desk top SEMs.  With the specially designed EM-Tec sample holders, you can extend the versatility of the Phenom microscopes, increase productivity and unlock additional applications. They are divided into groups depending on the compatibility of the EM-Tec holders.


  1. EM-Tec sample holders compatible with the Phenom ProX, Pro and Pure.
  2. Additional sample holders compatible with the Phenom metallurgical sample holders used on the Phenom ProX, Pro and Pure.
  3. EM-Tec PH6 XL mounting pillar and additional sample holders compatible with the Phenom XL.
  4. EM-Tec S-Clip holders compatible with the Phenom ProX, Pro and Pure.
  5. EM-Tec stub adapters for using JEOL and Hitachi stubs on the Phenom desk top SEM.
  6. EM-Tec sample stubs compatible with the Phenom ProX, Pro and Pure



 With the EM-Tec sample holders, the versatility of the Phenom desk top SEMs is enhanced and additional applications can be easily unlocked.
The Phenom XL with its larger sample stage is compatible with pin stubs up to 100mm diameter and pin stub based SEM sample holders of up to 100x100x65mm. For the Phenom XL we invite you to explore the vast EM-Tec range of practical of SEM sample holder to increase productivity with the Phenom XL.



1 - EM-Tec SEM sample holders for the Phenom Pure, Pro and ProX desk top microscopes:
The EM-Tec sample holders presented on this page are compatible with the standard Phenom sample holder used in the Phenom Prox, Pro and Pure. With dedicated EM-Tec sample holders, tilt can be added to sample movements. Furthermore, samples can be held without the use of adhesives.

Capacity, size and compatibility of the EM-Tec SEM sample holders for the Phenom desk top SEMs:
( images at ordering information)

Product #

Description

Capacity

Dimensions

Sample holding

12-000211

EM-Tec PS15 swivel pin mount

Ø15mm/90°-0°-90°

Ø15x15mm

Adhesive

12-003240

EM-Tec PS17 mini swivel vise holder

0-4mm/90°-0°-90°

Ø12x18mm

Set screw

12-000241

EM-Tec TV12 mini variable tilt mount

0-90° / 11x12mm

14x14x14/20mm

sample mounting

10-002245

EM-Tec P45 fixed 45° tilt holder

Ø12.7mm pin stub

Ø12.7x17mm

Pin stub

10-002212

EM-Tec PS3 mini stub SampleClamp

0-2mm thickness

Ø12.7x3.2mm

Screw/washer

10-002240

EM-Tec PS4 mini pin stub vise clamp

0-4mm thickness

Ø12.7x7.2mm

Set screw

10-002244

EM-Tec PS44 quad vise stub holder

0-4mm thickness

Ø25.4x7.2mm

4 x Set screw

10-002218

EM-Tec PS6 mini pin stub split vise clamp

0-6mm thickness

Ø12.7x7.2mm

Mini vise jaws

12-000230

EM-Tec PS9 mini split mount vise clamp

0-8mm thickness

Ø15x10mm

Mini vise jaws

10-002242

EM-Tec PS7 mini pin stub dual slot vise

2x1mm thickness

Ø15x6mm

Set screws

12-000112

EM-Tec PS12 pin stub vise clamp

0-12mm thickness

Ø25.4x10mm

Set screw

12-000117

EM-Tec GS2 mini pin stub needle clamp

0-Ø2.0mm

Ø6x4mm

Set screw

10-002213

EM-Tec PS5 clamp up to Ø3.5mm

0-Ø3.5mm

Ø12.7x7.2mm

Set screw

10-002216

EM-Tec PS8 clamp up to Ø6.0mm

0-Ø6.0mm

Ø12.7x7.2mm

Set screw

12-000116

EM-Tec PS16 clamp up to Ø16mm

0-Ø16mm

Ø25.5x10mm

Set screw



2 – Sample holders for the Phenom metallurgical holders used in the Phenom Pure, Pro and ProX
The Phenom metallurgical sample holder and charge reduction metallurgical sample holders are compatible with 32mm metallographic mounts; this cover the 30mm and the 1-1/4” (32mm)  metallographic mounts. A range of sample holders have been specifically designed to make more use of the Phenom metallurgical holders and to extend the range of samples which can be examined.

Capacity, size and compatibility of the SEM sample holders for the Phenom metallurgical holder:
( images at ordering information)

Product #

Description

Capacity

Dimensions

Sample holding

12-003222

PHF32 filter holder kit

Ø32mm filters

Ø32x20.5mm

Clamp in holder

11-000632

PHA32 adapter ring for 25mm/1” mounts

Ø25mm /1”

Ø32/26x10mm

Clamp in holder

12-003233

PH22 bulk sample holder

Ø22x12mm

Ø32x20mm

Set screw

12-003236

PH32 vise type holder

0-22mm

Ø32x20mm

Set screw



    EM-Tec PH6 XL mounting pillar and additional sample holders for the Phenom XLEM-Tec PH6 XL mounting pillar and additional sample holders for the Phenom XL

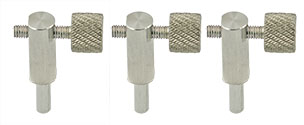

3 – EM-Tec PH6 XL mounting pillar and additional sample holders for the Phenom XL

The Phenom XL desk top SEM with the large stage has a capacity of 100x100x65mm (L x W x H). The unique pin plate allows for either large sample, multiple samples and large sample holders with pin.  Alternatively, the unique XL mounting pillars can be used to clamp samples between the mounting pillar. The XL mounting pillars can be freely positioned in the XL pin plate to accommodate large, awkward and even multiple samples. The XL mounting pillar are sold in sets of three and consists of the pin plate compatible pillars with standard 3.2mm pin and M3 threaded holes and 16mm long M3 threaded thumb screws. Alternatively, other M3 threaded screws  can be used to hold a sample. Each XL pillar has two threaded holes for added versatility.

Specifications and dimensions of the Phenom XL mounting pillars: ( images at ordering information)

Product #

Description

Dimensions

Sample holding

12-003206

XL mounting pillar

Pillar Ø6x15mm, 2 x M3 threaded holes with pin
Thumbscrew, M3 x 16mm thread

Thumb screws

Due to the large stage capacity, the Phenom XL is compatible with most pin type SEM holders and all standard pin stubs up to 100mm diameter. These can be found on:
All pin stubs with standard pin and diameter up to 100mm.
All EM-Tec S-Clip with standard pin and diameter up to 100mm.
All EM-Tec sample holders with standard pin and maximum size of 100x100x65mm.



4 – EM-Tec S-Clip holders for the Phenom desk top SEMs
The EM-Tec S-Clips holders with the spring-loaded sample clips compatible with the Phenom Pure, Pro, ProX and XL desk top SEMs are available on:

  •  standard horizontal pin stub
  •  45°  and 45° /90°  pin stubs
  • 90° pin stubs.

They are useful to hold thin sample such as Si wafer chips, metal strips, plastic foils, etc.

Specifications of the S-Clip holders: ( images at ordering information)

Product #

Style

Stub size

 S-Clips #

12-002910

Horizontal, single S-Clip on Ø19mm pin stub

Ø19x3.2mm

1

12-002920-1/2/3

Horizontal

Ø25x3.2mm

1 or 2 or 3

12-002901

0-180° EM-Tec swivel mount with S-Clip

Ø15x3mm

1

12-002925

45° mount with single S-Clip

Ø25x16mm

1

12-002927

45°/90° mount with two S-Clips

Ø25x16mm

2

12-002929

 2 x 90°dual 90° mount with two S-Clips

Ø25x16mm

2

12-002911

1 x 90° single 90° mount with single S-Clip

Ø12.7x17mm

1

12-002914

4 x 90°quadruple 90° mount with four S-Clips

12.7x12.7x15mm

4



5 - EM-Tec SEM stub adapters for the Phenom desk top SEMs:

With the EM-Tec SEM stub adapters, Hitachi and JEOL SEM stubs can be used with the Phenom desk top SEM. Quick, no need to re-mount the sample and sample integrity is fully retained. Recommended SEM stub adapters are:

Specifications of the EM-Tec SEM sample stub adapters: ( images at ordering information)

Product #

Type

Base

Adapts to

Overall size

11-000119

P4

Pin stub

Hitachi stub with M4 thread

Ø15x15mm

11-000216

PJ12

Pin stub

JEOL stubs with 9.5 and 12.2mm diameter

Ø30x10mm



6 - EM-Tec sample stubs for the Phenom Pure, Pro and ProX desk top SEM

The Phenom Pure, Pro and ProX desk top SEMs in the standard configuration, are using the unique Phenom sample holders for samples up to 25mm diameter. All pin stubs, pin stub adapters and small pin stub based sample holders up to a diameter of 25mm on this page can be used in the Phenom Pure, Pro and ProX desk top SEMs.  Available sample stubs for the Phenom Pure, Pro and ProX are: ( images at ordering information)

  • Standard flat pins stubs with the popular 12.7 and 25.4mm diameter. Additional sizes are 6, 10, 19mm and 12.7mm with a flat.
  • Angled pin stubs with 45°, 45/90° and 90° pre-tilt surfaces.
  • Engraved pin stubs with 12.7, 19 and 25.4mm diameter for multiple small specimens and correlative microscopy.
  • Dish type pin stub with 12.7mm diameter top for fluid samples and solutions.


1 Order information for EM-Tec SEM sample holders for the Phenom Pure, Pro and ProX desk top microscopes:


*Prices are without tax. Tax might be added in cart.


    # 10-002240   EM-Tec PS4 mini pin stub vise clamp 0-4mm, 12.7x7.2mm, pin

EM-Tec PS4 mini pin stub vise clamp 0-4mm, 12.7x7.2mm, pin EM-Tec PS4 mini pin stub vise clamp for sample thickness from 0-4mm. The sample is held vertically with a small set screw. Most effective way to study cross sections of thin samples. Holder size w/o pin is 12.7x7.2mm.

EM-Tec PS4 mini pin stub vise clamp 0-4mm, 12.7x7.2mm, pin
Product # Unit Price* Add to Quote / Cart
10-002240 EM-Tec PS4 mini pin stub vise clamp 0-4mm, 12.7x7.2mm, pin
Qty:

each €7,50


    # 10-002244   EM-Tec PS44 quad vise stub holder for 4 samples from 0-4mm, pin

EM-Tec PS44 quad vise stub holder for 4 samples from 0-4mm, pin The samples are held vertically with 4 small set screws. Most effective way to study cross sections or thin samples. Holder size w/o pin is 25.4 x 7.2mm. Standard pin.

EM-Tec PS44 quad vise stub holder for 4 samples from 0-4mm, pin
Product # Unit Price* Add to Quote / Cart
10-002244 EM-Tec PS44 quad vise stub holder for 4 samples from 0-4mm, pin
Qty:

each €29,50


    # 10-002218   EM-Tec PS6 mini split pin stub vise clamp 0-6mm, 12.7x7.2mm, pin

EM-Tec PS6 mini split pin stub vise clamp 0-6mm, 12.7x7.2mm, pin EM-Tec PS6 mini pin stub split vise clamp for sample thickness from 0-6mm. The sample is clamped between the two min vise clamps. The split vise jaws are closed by an allen screw. Closed split vise diameter is 12.7mm; when opened it is 19x12.7mm.

EM-Tec PS6 mini split pin stub vise clamp 0-6mm, 12.7x7.2mm, pin
Product # Unit Price* Add to Quote / Cart
10-002218 EM-Tec PS6 mini split pin stub vise clamp 0-6mm, 12.7x7.2mm, pin
Qty:

each €24,50


    # 10-002242   EM-Tec PS7 mini pin stub dual slot vise clamp, 2x1mm, 15x6mm, pin

EM-Tec PS7 mini pin stub dual slot vise clamp, 2x1mm, 15x6mm, pin EM-Tec PS7 mini pin stub dual slot vise with two slots of one mm wide. Ideal for holding thin wafer pieces samples for cross section imaging. Samples are clamped by set screws. Holder size w/o pin is 15x6mm.

EM-Tec PS7 mini pin stub dual slot vise clamp, 2x1mm, 15x6mm, pin
Product # Unit Price* Add to Quote / Cart
10-002242 EM-Tec PS7 mini pin stub dual slot vise clamp, 2x1mm, 15x6mm, pin
Qty:

each €19,50


    # 12-000112   EM-Tec PS12 pin stub vise clamp 0-12mm, 25x7.2mm, pin

EM-Tec PS12 pin stub vise clamp 0-12mm, 25x7.2mm, pin EM-Tec PS12 pin stub vise clamp for sample thickness from 0-12mm. The sample is held vertically with a set screw. Most effective way to study cross section of thin samples. Holder size w/o pin is 25x6mm.

EM-Tec PS12 pin stub vise clamp 0-12mm, 25x7.2mm, pin
Product # Unit Price* Add to Quote / Cart
12-000112 EM-Tec PS12 pin stub vise clamp 0-12mm, 25x7.2mm, pin
Qty:

each €24,50


    # 10-002213   EM-Tec PS5 pin stub round clamp up to 3.5mm, 12.7x7.2mm, pin

EM-Tec PS5 pin stub round clamp up to 3.5mm,  12.7x7.2mm, pin EM-Tec PS5 mini pin stub to clamp round shaped samples up to 3.5mm. Samples are held by a set screw. Pin stub top diameter is 12.7mm.

EM-Tec PS5 pin stub round clamp up to 3.5mm, 12.7x7.2mm, pin
Product # Unit Price* Add to Quote / Cart
10-002213 EM-Tec PS5 pin stub round clamp up to 3.5mm, 12.7x7.2mm, pin
Qty:

each €18,50


    # 10-002216   EM-Tec PS8 pin stub round clamp up to 6mm, 12.7x7.2mm, pin

EM-Tec PS8 pin stub round clamp up to 6mm,  12.7x7.2mm, pin EM-Tec PS8 mini pin stub to clamp round shaped samples up to 6.0mm. Samples are held by a set screw. Pin stub top diameter is 12.7mm.

EM-Tec PS8 pin stub round clamp up to 6mm, 12.7x7.2mm, pin
Product # Unit Price* Add to Quote / Cart
10-002216 EM-Tec PS8 pin stub round clamp up to 6mm, 12.7x7.2mm, pin
Qty:

each €18,50


    # 12-000241   EM-Tec TV12 mini variable 0-90 angle tilt sample holder 11x12mm, angle indicators at 0, 30, 45, 70 and 90 degrees, pin

EM-Tec TV12 mini variable 0-90 angle tilt sample holder 11x12mm, angle indicators at 0, 30, 45, 70 and 90 degrees, pin EM-Tec TV12 mini variable tilt mount allows 0-90 angle in a small sample mount. The sample needs to be mounted on the tilting platform of this compact holder. Side engravings on the tilting platform assist in setting the desired tilt angle. Practical holder to examine sample under an angle.

EM-Tec TV12 mini variable 0-90 angle tilt sample holder 11x12mm, angle indicators at 0, 30, 45, 70 and 90 degrees, pin
Product # Unit Price* Add to Quote / Cart
12-000241 EM-Tec TV12 mini variable 0-90 angle tilt sample holder 11x12mm, angle indicators at 0, 30, 45, 70 and 90 degrees, pin
Qty:

each €53,50


    # 12-000211   EM-Tec PS15 Pin stub swivel mount, 15x15mm, pin

EM-Tec PS15 Pin stub swivel mount, 15x15mm, pin EM-Tec PS15 swivel pin stub mount. The head of the mount is attached to the pin via a swivel hinge which allows for 90 degrees tilting each way. Excellent mount for SEMs without tilting facilities or when random tilt angled are needed. When the desired tilt angle is set, the top is secured with a socket cap screw. Top diameter is 15mm and height above pin is 15mm.

EM-Tec PS15 Pin stub swivel mount, 15x15mm, pin
Product # Unit Price* Add to Quote / Cart
12-000211 EM-Tec PS15 Pin stub swivel mount, 15x15mm, pin
Qty:

each €38,50


    # 12-000116   EM-Tec PS16 pin stub round clamp up to 16mm, 25x7.2mm, pin

EM-Tec PS16 pin stub round clamp up to 16mm,  25x7.2mm, pin EM-Tec PS16 pin stub to clamp round shaped samples up to 16.0mm. Samples are held by a set screw. Pin stub top diameter is 25mm.

EM-Tec PS16 pin stub round clamp up to 16mm, 25x7.2mm, pin
Product # Unit Price* Add to Quote / Cart
12-000116 EM-Tec PS16 pin stub round clamp up to 16mm, 25x7.2mm, pin
Qty:

each €24,50


    # 12-000117   EM-Tec GR2 needle / tube sample holder for up to 2mm, gold plated brass, pin

EM-Tec GR2 needle / tube sample holder for up to 2mm, gold plated brass, pin EM-Tec PS2 mini pin stub tube/needle clamp. Capacity is up to 2mm diameter, the needle is secured with a small set screw. This holder is ideal for probes, needles, wire and thin tubes. Holder size is 6x4mm. Made from brass and plated with 1m of pure gold.

EM-Tec GR2 needle / tube sample holder for up to 2mm, gold plated brass, pin
Product # Unit Price* Add to Quote / Cart
12-000117 EM-Tec GR2 needle / tube sample holder for up to 2mm, gold plated brass, pin
Qty:

each €22,50


    # 10-002245   EM-Tec P45 fixed 45 pre-tilt holder for pin stubs/holders, 12.7x17mm, pin

EM-Tec P45 fixed 45 pre-tilt holder for pin stubs/holders, 12.7x17mm, pin EM-Tec P45 fixed 45 tilt holder for standard pin stubs. Image sample surfaces or cross sections directly under 45. Particularly useful for table top SEMs without tilt facilities. Size w.o. pin is 12.7x17mm.

EM-Tec P45 fixed 45 pre-tilt holder for pin stubs/holders, 12.7x17mm, pin
Product # Unit Price* Add to Quote / Cart
10-002245 EM-Tec P45 fixed 45 pre-tilt holder for pin stubs/holders, 12.7x17mm, pin
Qty:

each €39,50


    # 10-002212   EM-Tec PS3 mini pin stub SampleClamp 0-2mm, 12.7mm, pin

EM-Tec PS3 mini pin stub SampleClamp  0-2mm, 12.7mm, pin EM-Tec PS3 mini pin stub SampleClamp to clamp thin samples, foils, Si wafer pieces, etc. directly on the small stub. Samples are held down by a washer under the small screw. More effective and cleaner than using tape or conductive paint/paste. Pin stub diameter is 12.7mm.

EM-Tec PS3 mini pin stub SampleClamp 0-2mm, 12.7mm, pin
Product # Unit Price* Add to Quote / Cart
10-002212 EM-Tec PS3 mini pin stub SampleClamp 0-2mm, 12.7mm, pin
Qty:

each €18,50


    # 12-003240   EM-Tec PS17 mini swivel vise holder for up to 4mm, aluminium, pin

EM-Tec PS17 mini swivel vise holder for up to 4mm, aluminium, pin EM-Tec PS17 mini swivel vise mount to hold samples or cross section up to 4mm thickness. The sample is held by a set screw. Sample can be tilted both ways up to full 90 tilt angle. Holder size w/o pin is 12x18mm.

EM-Tec PS17 mini swivel vise holder for up to 4mm, aluminium, pin
Product # Unit Price* Add to Quote / Cart
12-003240 EM-Tec PS17 mini swivel vise holder for up to 4mm, aluminium, pin
Qty:

each €39,50


    # 12-000230   EM-Tec PS9 mini split mount vise 0 - 8mm, pin

EM-Tec PS9 mini split mount vise 0 - 8mm, pin EM-Tec PS9 mini split mount vise clamp for sample thickness from 0-8mm. The sample is clamped between the two jaws of the split mount. The split mount vise jaws are closed by two allen screws. Closed mini split mount vise dimensions are 15x10mm; when opened 24x15x10mm.(M4)

EM-Tec PS9 mini split mount vise 0 - 8mm, pin
Product # Unit Price* Add to Quote / Cart
12-000230 EM-Tec PS9 mini split mount vise 0 - 8mm, pin
Qty:

each €24,50



2 Order information for sample holders for the Phenom metallurgical holders used in the Phenom Pure, Pro and ProX:


*Prices are without tax. Tax might be added in cart.


    # 12-003222   Phenom PHF32 filter holder kit with support block and clamping ring for Phenom metallurgical sample holder

Phenom PHF32 filter holder kit with support block and clamping ring for Phenom metallurgical sample holder Phenom PHF32 filter holder kit to examine paper or plastic filters with the Phenom Pure, Pro and ProX table top SEMs. Fully compatible with the Phenom metallurgical sample holder and the Phenom charge reduction metallurgical sample holder. The Phenom PHF32 consists of a flat 32x0.5mm aluminium washer with an opening size of 22mm and a 32x10mm aluminium stub. The filter is to be placed between the washer and the stub and then loaded into the Phenom metallurgical holder for examination.

Phenom PHF32 filter holder kit with support block and clamping ring for Phenom metallurgical sample holder
Product # Unit Price* Add to Quote / Cart
12-003222 Phenom PHF32 filter holder kit with support block and clamp ring for Phenom metallurgical sample holder
Qty:

each €49,50


    # 11-000632   Phenom PHA32 adapter ring to hold 25mm/1 inch diameter mounts in the Phenom metallurgical holder

Phenom PHA32 adapter ring to hold 25mm/1 inch diameter mounts in the Phenom metallurgical holder Phenom PHA32 adapter ring which enables the examination of 25mm or 1 metallographic or petrographic mounts in the Phenom metallurgical holder. Outside diameter 32mm, inside diameter 26mm with a 0.5mm thin ridge and an opening of 22mm. Fully compatible with the Phenom metallurgical sample holder.

Phenom PHA32 adapter ring to hold 25mm/1 inch diameter mounts in the Phenom metallurgical holder
Product # Unit Price* Add to Quote / Cart
11-000632 Phenom PHA32 adapter ring to hold 25mm/1 inch diameter mounts in the Phenom metallurgical holder
Qty:

each €39,50


    # 12-003233   Phenom PH22 bulk holder up to 22x12mm for Phenom metallurgical sample holder

Phenom PH22 bulk holder up to 22x12mm for Phenom metallurgical sample holder Phenom PH22 bulk sample holder has been designed to hold awkwardly shaped samples up to a diameter of 22mm and a height of 12mm. Screws through the three posts holds the sample; with a screw in the base, the sample height can be adjusted. Several lengths of screws are supplied to cover the complete sample holding area while at the same time keeping the total maximum diameter within 32mm. Fully compatible with the Phenom metallurgical holders.

Phenom PH22 bulk holder up to 22x12mm for Phenom metallurgical sample holder
Product # Unit Price* Add to Quote / Cart
12-003233 Phenom PH22 bulk holder up to 22x12mm for Phenom metallurgical sample holder
Qty:

each €64,50


    # 12-003236   Phenom PH32 vise clamp up to 22mm thick for Phenom metallurgical sample holder

Phenom PH32 vise clamp up to 22mm thick for  Phenom metallurgical sample holder Phenom PH32 vise type holder for samples up to 22mm thick and 12mm height. Length varies with thickness; from 32mm to 25mm. The sample is held by screws. With an additional screw in the base the height of the sample can be adjusted. Several lengths of screws are supplied to cover the complete sample holding area but not to exceed 32mm diameter. Fully compatible with the Phenom metallurgical holders.

Phenom PH32 vise clamp up to 22mm thick for Phenom metallurgical sample holder
Product # Unit Price* Add to Quote / Cart
12-003236 Phenom PH32 vise clamp up to 22mm thick for Phenom metallurgical sample holder
Qty:

each €64,50



3 Order information for EM-Tec PH6 XL mounting pillar and additional sample holders for the Phenom XL:


*Prices are without tax. Tax might be added in cart.


    # 12-003206   EM-Tec PH6 XL mounting pillars for Phenom XL pin plate

EM-Tec PH6 XL mounting pillars for Phenom XL pin plate EM-Tec PH6 XL mounting pillars can be freely positioned in the Phenom XL pin plate to accommodate large, awkward and even multiple samples. Sold in sets of three with pin plate compatible aluminium pillars with standard 3.2mm pin and M3 threaded holes and M3x16mm threaded stainless steel thumb screws.

EM-Tec PH6 XL mounting pillars for Phenom XL pin plate
Product # Unit Price* Add to Quote / Cart
12-003206 EM-Tec PH6 XL mounting pillars for Phenom XL pin plate
Qty:

set/3 €64,50



4 Order information for EM-Tec S-Clip holders for the Phenom desk top SEMs:


*Prices are without tax. Tax mEM-Tec S-Clip holders for the Phenom table top SEMsight be added in cart.

EM-Tec S-Clip sample holder with 1xS-Clip 45 on 25.4mm pin stub EM-Tec S-Clip sample holder with 1xS-Clip 45 on 25.4mm pin stub
Product # Unit Price* Add to Quote / Cart
12-002925 EM-Tec S-Clip sample holder with 1xS-Clip 45 on 25.4mm pin stub
Qty:

each €18,50

EM-Tec S-Clip sample holder with 1x S-Clip on 19mm pin stub EM-Tec S-Clip sample holder with 1x S-Clip on 19mm pin stub
Product # Unit Price* Add to Quote / Cart
12-002910 EM-Tec S-Clip sample holder with 1x S-Clip on 19mm pin stub
Qty:

each €13,50

EM-Tec S-Clip sample holder with S-Clip(s) on 25.4mm pin stub EM-Tec S-Clip sample holder with S-Clip(s) on 25.4mm pin stub
Product # Unit Price* Add to Quote / Cart
12-002920-1 EM-Tec S-Clip sample holder with 1x S-Clip on 25.4mm pin stub
Qty:

each €16,50
12-002920-2 EM-Tec S-Clip sample holder with 2x S-Clips on 25.4mm pin stub
Qty:

each €21,50
12-002920-3 EM-Tec S-Clip sample holder with 3x S-Clips on 25.4mm pin stub
Qty:

each €26,50

EM-Tec S-Clip sample holder with 2xS-Clips 45/90 on 25.4mm pin stub EM-Tec S-Clip sample holder with 2xS-Clips 45/90 on 25.4mm pin stub
Product # Unit Price* Add to Quote / Cart
12-002927 EM-Tec S-Clip sample holder with 2xS-Clips 45/90 on 25.4mm pin stub
Qty:

each €23,50

EM-Tec PS15C Pin stub swivel mount sample holder with 1xS-Clip, pin EM-Tec PS15C Pin stub swivel mount sample holder with 1xS-Clip, pin
Product # Unit Price* Add to Quote / Cart
12-002901 EM-Tec PS15C Pin stub swivel mount sample holder with 1xS-Clip, pin
Qty:

each €48,50

EM-Tec S-Clip sample holder with 2xS-Clips double 90 on 25.4mm pin EM-Tec S-Clip sample holder with 2xS-Clips double 90 on 25.4mm pin
Product # Unit Price* Add to Quote / Cart
12-002929 EM-Tec S-Clip sample holder with 2xS-Clips double 90 on 25.4mm pin stub
Qty:

each €23,50

EM-Tec S-Clip sample holder with 1xS-Clip at 90, 12.7mm, pin EM-Tec S-Clip sample holder with 1xS-Clip at 90, 12.7mm, pin
Product # Unit Price* Add to Quote / Cart
12-002911 EM-Tec S-Clip sample holder with 1xS-Clip at 90, 12.7mm, pin
Qty:

each €25,50

EM-Tec S-Clip sample holder with 4xS-Clips at 90, 12.7x12.7x14mm, pin EM-Tec S-Clip sample holder with 4xS-Clips at 90, 12.7x12.7x14mm, pin
Product # Unit Price* Add to Quote / Cart
12-002914 EM-Tec S-Clip sample holder with 4xS-Clips at 90, 12.7x12.7x14mm, pin
Qty:

each €39,50



5 Order information for EM-Tec SEM stub adapters for the Phenom desk top SEMs:


*Prices are without tax. Tax might be added in cart.


    # 11-000119   EM-Tec P4 pin stub adapter to M4 thread, straight for smaller stubs/holders

EM-Tec P4 pin stub adapter to M4 thread, straight for smaller stubs/holders EM-Tec P4 pin stub adapter to Hitachi M4 for smaller SEM stubs and SEM holders with M4 thread. Pin is standard 3.2mm diameter and 9.5mm long. Small design where the head of the adapter fits in the M4 thread. Machined from vacuum grade aluminium. Overall size is 4x13.5mm.

EM-Tec P4 pin stub adapter to M4 thread, straight for smaller stubs/holders
Product # Unit Price* Add to Quote / Cart
11-000119 EM-Tec P4 pin stub adapter to M4 thread, straight for smaller stubs/holders
Qty:

each €16,50


    # 11-000216   EM-Tec PJ12 pin stub adapter for 12.2mm and 9.5mm JEOL stubs

EM-Tec PJ12 pin stub adapter for 12.2mm and 9.5mm JEOL stubs EM-Tec PJ12 Pin stub adapter for for 12.2mm and 9.5mm JEOL stubs. This stub adapter accepts up to 16mm cylinder stubs. Can also be used for the Hitachi 15mm and the 15mm ISI/ABT/Topcon stubs. Set screw is used to secure the SEM stubs. Overall size 25x19.5mm. Includes allen key.

EM-Tec PJ12 pin stub adapter for 12.2mm and 9.5mm JEOL stubs
Product # Unit Price* Add to Quote / Cart
11-000216 EM-Tec PJ12 pin stub adapter for 12.2mm and 9.5mm JEOL stubs
Qty:

each €24,50



6 Order information for EM-Tec sample stubs for the Phenom Pure, Pro and ProX desk top SEMs:


*Prices are without tax. Tax might be added in cart.

SEM pin stub 6.4 diameter top, standard pin, aluminium SEM pin stub 6.4 diameter top, standard pin, aluminium
Product # Unit Price* Add to Quote / Cart
10-002006-50 SEM pin stub 6.4 diameter top, standard pin, aluminium
Qty:

pkg/50 €6,00
10-002006-100 SEM pin stub 6.4 diameter top, standard pin, aluminium
Qty:

pkg/100 €11,00

SEM pin stub 9.5 diameter top, standard pin, aluminium SEM pin stub 9.5 diameter top, standard pin, aluminium
Product # Unit Price* Add to Quote / Cart
10-002010-10 SEM pin stub 9.5 diameter top, standard pin, aluminium
Qty:

pkg/10 €14,00
10-002010-50 SEM pin stub 9.5 diameter top, standard pin, aluminium
Qty:

pkg/50 €66,50
10-002010-100 SEM pin stub 9.5 diameter top, standard pin, aluminium
Qty:

pkg/100 €126,00

SEM pin stub 12.7 diameter top, standard pin, aluminium SEM pin stub 12.7 diameter top, standard pin, aluminium
Product # Unit Price* Add to Quote / Cart
10-002012-50 SEM pin stub 12.7 diameter top, standard pin, aluminium
Qty:

pkg/50 €11,50
10-002012-100 SEM pin stub 12.7 diameter top, standard pin, aluminium
Qty:

pkg/100 €21,90
10-002012-500 SEM pin stub 12.7 diameter top, standard pin, aluminium
Qty:

pkg/500 €104,50

SEM pin stub 12.7 diameter top, with flat, standard pin, aluminium SEM pin stub 12.7 diameter top, with flat, standard pin, aluminium
Product # Unit Price* Add to Quote / Cart
10-002014-10 SEM pin stub 12.7 diameter top, with flat, standard pin, aluminium
Qty:

pkg/10 €7,40
10-002014-50 SEM pin stub 12.7 diameter top, with flat, standard pin, aluminium
Qty:

pkg/50 €35,00
10-002014-100 SEM pin stub 12.7 diameter top, with flat, standard pin, aluminium
Qty:

pkg/100 €66,50

SEM pin stub 19 diameter top, standard pin, aluminium SEM pin stub 19 diameter top, standard pin, aluminium
Product # Unit Price* Add to Quote / Cart
10-002019-10 SEM pin stub 19 diameter top, standard pin, aluminium
Qty:

pkg/10 €19,50
10-002019-50 SEM pin stub 19 diameter top, standard pin, aluminium
Qty:

pkg/50 €92,50
10-002019-100 SEM pin stub 19 diameter top, standard pin, aluminium
Qty:

pkg/100 €175,00

45 degree angled SEM pin stub 12.7 diameter standard pin, aluminium 45 degree angled SEM pin stub 12.7 diameter standard pin, aluminium
Product # Unit Price* Add to Quote / Cart
10-002204-1 45 degree angled standard profile SEM pin stub 12.7 diameter standard pin, aluminium
Qty:

pkg/1 €2,25
10-002204-5 45 degree angled standard profile SEM pin stub 12.7 diameter standard pin, aluminium
Qty:

pkg/5 €10,60
10-002204-10 45 degree angled standard profile SEM pin stub 12.7 diameter standard pin, aluminium
Qty:

pkg/10 €20,50

SEM pin stub 25.4 diameter top, standard pin, aluminium SEM pin stub 25.4 diameter top, standard pin, aluminium
Product # Unit Price* Add to Quote / Cart
10-002025-10 SEM pin stub 25.4 diameter top, standard pin, aluminium
Qty:

pkg/10 €12,95
10-002025-50 SEM pin stub 25.4 diameter top, standard pin, aluminium
Qty:

pkg/50 €62,50
10-002025-100 SEM pin stub 25.4 diameter top, standard pin, aluminium
Qty:

pkg/100 €122,50

45/90 degree angled standard profile SEM pin stub 12.7 diameter standard pin, aluminium 45/90 degree angled standard profile SEM pin stub 12.7 diameter standard pin, aluminium
Product # Unit Price* Add to Quote / Cart
10-002206-1 45/90 degree angled standard profile SEM pin stub 12.7 diameter standard pin, aluminium
Qty:

pkg/1 €2,75
10-002206-5 45/90 degree angled standard profile SEM pin stub 12.7 diameter standard pin, aluminium
Qty:

pkg/5 €12,80
10-002206-10 45/90 degree angled standard profile SEM pin stub 12.7 diameter standard pin, aluminium
Qty:

pkg/10 €24,70

Engraved SEM pin stub 12.7 diameter with 4 numbered fields, aluminium Engraved SEM pin stub 12.7 diameter with 4 numbered fields, aluminium
Product # Unit Price* Add to Quote / Cart
10-002113-1 Engraved SEM pin stub 12.7 diameter with 4 numbered fields, aluminium
Qty:

pkg/1 €4,50
10-002113-10 Engraved SEM pin stub 12.7 diameter with 4 numbered fields, aluminium
Qty:

pkg/10 €41,00

45 degree angled SEM pin stub 25.4 diameter standard pin, aluminium 45 degree angled SEM pin stub 25.4 diameter standard pin, aluminium
Product # Unit Price* Add to Quote / Cart
10-002205-1 45 degree angled SEM pin stub 25.4 diameter standard pin, aluminium
Qty:

pkg/1 €5,00
10-002205-5 45 degree angled SEM pin stub 25.4 diameter standard pin, aluminium
Qty:

pkg/5 €22,50

Engraved SEM pin stub 19.0 diameter with 4 numbered fields, aluminium Engraved SEM pin stub 19.0 diameter with 4 numbered fields, aluminium
Product # Unit Price* Add to Quote / Cart
10-002119-1 Engraved SEM pin stub 19.0 diameter with 4 numbered fields, aluminium
Qty:

pkg/1 €5,50
10-002119-10 Engraved SEM pin stub 19.0 diameter with 4 numbered fields, aluminium
Qty:

pkg/10 €45,00

45/90 degree angled SEM pin stub 25.4 diameter standard pin, aluminium 45/90 degree angled SEM pin stub 25.4 diameter standard pin, aluminium
Product # Unit Price* Add to Quote / Cart
10-002209-1 45/90 degree angled SEM pin stub 25.4 diameter standard pin, aluminium
Qty:

pkg/1 €6,00
10-002209-5 45/90 degree angled SEM pin stub 25.4 diameter standard pin, aluminium
Qty:

pkg/5 €27,00

Double 45/90 degree angled SEM pin stub 25.4 diameter standard pin, aluminium Double 45/90 degree angled SEM pin stub 25.4 diameter standard pin, aluminium
Product # Unit Price* Add to Quote / Cart
10-002207-1 Double 45/90 degree angled SEM pin stub 25.4 diameter standard pin, aluminium
Qty:

pkg/1 €6,75
10-002207-5 Double 45/90 degree angled SEM pin stub 25.4 diameter standard pin, aluminium
Qty:

pkg/5 €30,50

SEM Dish pin stub, 12.7x7mm with 1.5mm dish depth, aluminium SEM Dish pin stub, 12.7x7mm with 1.5mm dish depth, aluminium
Product # Unit Price* Add to Quote / Cart
10-002210-1 SEM Dish pin stub, 12.7x7mm with 1.5mm dish depth, aluminium
Qty:

pkg/1 €5,00
10-002210-5 SEM Dish pin stub, 12.7x7mm with 1.5mm dish depth, aluminium
Qty:

pkg/5 €23,50
10-002210-10 SEM Dish pin stub, 12.7x7mm with 1.5mm dish depth, aluminium
Qty:

pkg/10 €45,00

Double 90 degree angled SEM pin stub 25.4 diameter standard pin, aluminium Double 90 degree angled SEM pin stub 25.4 diameter standard pin, aluminium
Product # Unit Price* Add to Quote / Cart
10-002208-1 Double 90 degree angled SEM pin stub 25.4 diameter standard pin, aluminium
Qty:

pkg/1 €6,00
10-002208-5 Double 90 degree angled SEM pin stub 25.4 diameter standard pin, aluminium
Qty:

pkg/5 €27,00





SEM Supplies

TEM Supplies

Calibration

Sample Preparation

AFM / SPM

  SEM Sample Stubs
  Sample Stub Adapters
  SEM Stage Adapters
  SEM Sample Holders
  SEM Preparation Stands
  Filaments/Cathodes
  Silicon Finder Grid
  Gatan 3View Pins
  FEI Volumescope Pins
  SEM Stub Storage Boxes
  Phenom Supplies
  JEOL NeoScope Supplies
  Hitachi TM series Supplies
  Field & lab sampler kits

Instruments


  Acoustic Enclosures
  Critical Point Dryers
  Cressington SEM Coaters
  HI-Res IR Chamberscope
  TEM Sample Prep
  TEM Grids
  TEM Support Films
  Graphene Films
  Grid Storage Boxes
  Cryo Grid Box
  TEM sample staining
  Filaments/Cathodes
  Cryo Pin for U-M
  Eyelash manipulators

FIB Supplies


  FIB Lift-out grids
  FIB low profile stubs
  FIB grid holders
  FIB pre-tilt holders
  FIB Grid Boxes
  SEM / FIB Magn. Calib.
  SEM Res. Test Spec.
  EDS / WDS Calibration
  TEM Calibration
  AFM / SPM Calibration
  LM Magn. Calibration

Vacuum Supplies


  Bullseye Vacuum Gauges
  D215V Vacuum Controller
  D801W Vacuum Gauges
  Quick-check Gauges
  KF/NW Vacuum Parts
  Vacuum oil and grease
  Vacuum sample storage
  Evaporation baskets
  Quartz QCM Crystals
  Sputter Targets
  Carbon Rods & Fibers
  Quartz QCM Crystals
  Supports & Substrates
  SEM Preparation Stands
  Tweezers
  Probes & Picks
  Cryo Jug & Container
  Applicators & Swabs
  Plastic Transfer Pipettes
  Cutting Tools / Scissors
  Conductive Paint/Cement
  Conductive Tapes &Tabs
  Non-conductive Adhesives
  Stainless Steel Mesh
  Sample Storage
  Tools
  Preparation mats & tiles
  Cleaning / Gloves
  Diamond Polishing Paste
  AFM/SPM Discs
  AFM/SPM Holders
  AFM/SPM Disc Storage
  Cantilever Tweezers
  AFM/SPM Discs Tweezers
  Mica Discs
  HOPG Substrates


LM


  Correlative Cover Slips
  Glass Microscope Slides
  Glass Cover Slips
  Quartz Microscope Slides
  Quartz Cover Slips
  Black metal slides
  Slide storage boxes
  Calibration
  Plastic Transfer Pipettes
