EM-Tec C-Square multi SEM pin stub holders
efficient use of SEM stage with easy X-Y alignment

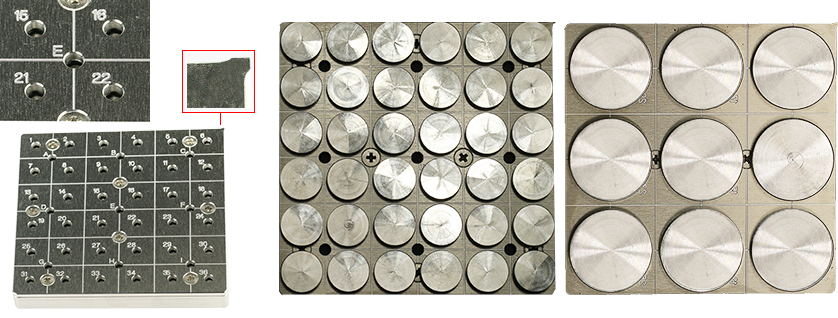

   EM-Tec C-Square multi SEM pin stub holders 12-002335 (with Standard Ø3.2 mm pin) or 12-003335 (with M4 thread) or 12-006335 (with Ø14mm JEOL stub)


Introduction

The EM-Tec C-Square multi pin stub holders are primarily designed to hold multiple Ø12.7mm and/or Ø25.4mm pin stubs with the standard 3.2mm pin diameter. Larger or smaller pin stubs can also be used on the EM-Tec C-Square multi pin stub holders. They offer optimum X-Y coverage of the SEM stage and allow for easy alignment with the square sides and additionally engraved lines in X-Y directions. To facilitate quick and easy loading and exchange of the pin stubs, proprietary conductive gripping O-rings hold the pin stubs in place and provide a conductive path at the same time. The EM-Tec C-Square multi pin stub holders are available in 7 different sizes:

  • EM-Tec CS9/4 C-Square multi pin stub holder for 9x Ø12.7mm or 4 x Ø25.4mm pin stubs
  • EM-Tec CS16/4 C-Square multi pin stub holder for 16x Ø12.7mm or 4 x Ø25.4mm pin stubs
  • EM-Tec CS18/6 C-Square multi pin stub holder for 18x Ø12.7mm or 6 x Ø25.4mm pin stubs
  • •EM-Tec CS25/4 C-Square multi pin stub holder for 25x Ø12.7mm or 4 x or 9 x Ø25.4mm pin stubs
  • EM-Tec CS36/9 C-Square multi pin stub holder for 36x Ø12.7mm or 9 x Ø25.4mm pin stubs
  • EM-Tec CS49/9 C-Square multi pin stub holder for 49x Ø12.7mm or 9 x Ø25.4mm pin stubs
  • EM-Tec CS64/16 C-Square multi pin stub holder for 64 x Ø12.7mm or 16 x Ø25.4mm pin stubs

Feature and benefits of the EM-Tec C-Square multi pin stub holders:

  • Conductive pin gripping O-rings for quick and easy exchange of stubs
  • Compatible with standard pin stubs and short Zeiss pin stubs with 3.2mm pin diameter
  • Square holders optimised for X-Y travel directions
  • Reference point in the upper right corner
  • Easy programmable locations
  • Alphanumeric location ID
  • Engraved orientation lines to facilitate X-Y alignment
  • Fully compatible with all EM-Tec SEM stage adapters
  • Ideal for automated SEM/EDX particle analysis and GSR analysis
  • Suitable for correlative & corroborative microscopy applications

Specifications of the EM-Tec C# square multi pin stub holders:

Product #

Style

Ø12.7 stubs

Ø25.4 stubs

Pattern

Pitch Ø12.7

Size

SEM stage comp.

12-002332

EM-Tec CS9/4 C-Square

9

4

3x3

14 mm

42x42mm

Standard Ø3.2 mm pin

12-003332

EM-Tec CS9/4 C-Square

9

4

3x3

14 mm

42x42mm

M4

12-006332

EM-Tec CS9/4 C-Square

9

4

3x3

14 mm

42x42mm

Ø14mm JEOL stub

12-002333

EM-Tec CS16/4 C-Square

16

4

4x4

14 mm

56x56 mm

Standard Ø3.2 mm pin

12-003333

EM-Tec CS16/4 C-Square

16

4

4x4

14 mm

56x56 mm

M4

12-006333

EM-Tec CS16/4 C-Square

16

4

4x4

14 mm

56x56 mm

Ø14mm JEOL stub

12-002338

EM-Tec CS18/6 C-Square

18

6

3x6

16 mm

48x96 mm

Standard Ø3.2 mm pin

12-003338

EM-Tec CS18/6 C-Square

18

6

3x6

16 mm

48x96 mm

M4

12-006338

EM-Tec CS18/6 C-Square

18

6

3x6

16 mm

48x96 mm

Ø14mm JEOL stub

12-002334

EM-Tec CS25/4 C-Square

25

4 or 9

5x5

14 mm

70x70 mm

Standard Ø3.2 mm pin

12-003334

EM-Tec CS25/4 C-Square

25

4 or 9

5x5

14 mm

70x70 mm

M4

12-006334

EM-Tec CS25/4 C-Square

25

4 or 9

5x5

14 mm

70x70 mm

Ø14mm JEOL stub

12-002335

EM-Tec CS36/9 C-Square

36

9

6x6

14 mm

84x84 mm

Standard Ø3.2 mm pin

12-003335

EM-Tec CS36/9 C-Square

36

9

6x6

14 mm

84x84 mm

M4

12-006335

EM-Tec CS36/9 C-Square

36

9

6x6

14 mm

84x84 mm

Ø14mm JEOL stub

12-002336

EM-Tec CS49/9 C-Square

49

9

7x7

14 mm

98x98 mm

Standard Ø3.2 mm pin

12-003336

EM-Tec CS49/9 C-Square

49

9

7x7

14 mm

98x98 mm

M4

12-006336

EM-Tec CS49/9 C-Square

49

9

7x7

14 mm

98x98 mm

Ø14mm JEOL stub

12-002337

EM-Tec CS64/16 C-Square

64

16

8x8

14 mm

112x112 mm

Standard Ø3.2 mm pin

12-003337

EM-Tec CS64/16 C-Square

64

16

8x8

14 mm

112x112 mm

M4

12-006337

EM-Tec CS64/16 C-Square

64

16

8x8

14 mm

112x112 mm

Ø14mm JEOL stub

 The EM-Tec C-Square multi pin stub SEM holders are available with:

  • standard pin to fit on SEM which use the standard pin; FEI, Philips, Tescan, Phenom, Pemtron, Aspex, RJLee, AmRay, Cambridge Instruments, Leica, CamScan, ETEC and Novascan SEMs.
  • M4 threaded hole compatible with Hitachi SEMs, FESEMs and table top SEMs and with the EM-Tec versatile SEM stage adapters
  • Ø14mm JEOL stub compatible with JEOL and EM-Tec stage adapters with a Ø14mm connection



Ordering Information EM-Tec C-Square multi pin stub holders for SEMs using standard 3.2mm pins; FEI, Philips, Zeiss, LEO, Tescan, AmRay, Cambridge Instruments, Leica, and CamScan.


*Prices are without tax. Tax might be added in cart.

EM-Tec CS9/4 C-Square multi pin stub holder for 9x 12.7mm or 4 x 25.4mm pin stubs, pin EM-Tec CS9/4 C-Square multi pin stub holder for 9x 12.7mm or 4 x 25.4mm pin stubs, pin
Product # Unit Price* Add to Quote / Cart
12-002332 each €84,50
Qty:


EM-Tec CS16/4 C-Square multi pin stub holder for 16x 12.7mm or 4 x 25.4mm pin stubs, pin EM-Tec CS16/4 C-Square multi pin stub holder for 16x 12.7mm or 4 x 25.4mm pin stubs, pin
Product # Unit Price* Add to Quote / Cart
12-002333 each €121,50
Qty:


EM-Tec CS18/6 C-Square multi pin stub holder for 18x 12.7mm or 6 x 25.4mm pin stubs, pin EM-Tec CS18/6 C-Square multi pin stub holder for 18x 12.7mm or 6 x 25.4mm pin stubs, pin
Product # Unit Price* Add to Quote / Cart
12-002338 each €129,50
Qty:


EM-Tec CS25/4 C-Square multi pin stub holder for 25x 12.7mm or 4x or 9x 25.4mm pin stubs, pin EM-Tec CS25/4 C-Square multi pin stub holder for 25x 12.7mm or 4x or 9x 25.4mm pin stubs, pin
Product # Unit Price* Add to Quote / Cart
12-002334 each €178,50
Qty:


EM-Tec CS36/9 C-Square multi pin stub holder for 36x 12.7mm or 9 x 25.4mm pin stubs, pin EM-Tec CS36/9 C-Square multi pin stub holder for 36x 12.7mm or 9 x 25.4mm pin stubs, pin
Product # Unit Price* Add to Quote / Cart
12-002335 each €248,50
Qty:


EM-Tec CS49/9 C-Square multi pin stub holder for 49x 12.7mm or 9 x 25.4mm pin stubs, pin EM-Tec CS49/9 C-Square multi pin stub holder for 49x 12.7mm or 9 x 25.4mm pin stubs, pin
Product # Unit Price* Add to Quote / Cart
12-002336 each €338,50
Qty:


EM-Tec CS64/16 C-Square multi pin stub holder for 64x 12.7mm or 16x 25.4mm pin stubs, pin EM-Tec CS64/16 C-Square multi pin stub holder for 64x 12.7mm or 16x 25.4mm pin stubs, pin
Product # Unit Price* Add to Quote / Cart
12-002337 each €451,50
Qty:



Ordering Information EM-Tec C-Square multi pin stub holders for Hitachi SEMs or the versatile EM-Tec stage adapters with M4 screw


*Prices are without tax. Tax might be added in cart.

EM-Tec CS9/4 C-Square multi pin stub holder for 9x 12.7mm or 4 x 25.4mm pin stubs, M4 EM-Tec CS9/4 C-Square multi pin stub holder for 9x 12.7mm or 4 x 25.4mm pin stubs, M4
Product # Unit Price* Add to Quote / Cart
12-003332 each €79,50
Qty:


EM-Tec CS16/4 C-Square multi pin stub holder for 16x 12.7mm or 4 x 25.4mm pin stubs, M4 EM-Tec CS16/4 C-Square multi pin stub holder for 16x 12.7mm or 4 x 25.4mm pin stubs, M4
Product # Unit Price* Add to Quote / Cart
12-003333 each €117,50
Qty:


EM-Tec CS18/6 C-Square multi pin stub holder for 18x 12.7mm or 6 x 25.4mm pin stubs, M4 EM-Tec CS18/6 C-Square multi pin stub holder for 18x 12.7mm or 6 x 25.4mm pin stubs, M4
Product # Unit Price* Add to Quote / Cart
12-003338 each €125,50
Qty:


EM-Tec CS25/4 C-Square multi pin stub holder for 25x 12.7mm or 4x or 9x 25.4mm pin stubs, M4 EM-Tec CS25/4 C-Square multi pin stub holder for 25x 12.7mm or 4x or 9x 25.4mm pin stubs, M4
Product # Unit Price* Add to Quote / Cart
12-003334 each €174,50
Qty:


EM-Tec CS36/9 C-Square multi pin stub holder for 36x 12.7mm or 9 x 25.4mm pin stubs, M4 EM-Tec CS36/9 C-Square multi pin stub holder for 36x 12.7mm or 9 x 25.4mm pin stubs, M4
Product # Unit Price* Add to Quote / Cart
12-003335 each €244,50
Qty:


EM-Tec CS49/9 C-Square multi pin stub holder for 49x 12.7mm or 9 x 25.4mm pin stubs, M4 EM-Tec CS49/9 C-Square multi pin stub holder for 49x 12.7mm or 9 x 25.4mm pin stubs, M4
Product # Unit Price* Add to Quote / Cart
12-003336 each €334,50
Qty:


EM-Tec CS64/16 C-Square multi pin stub holder for 64x 12.7mm or 16x 25.4mm pin stubs, M4 EM-Tec CS64/16 C-Square multi pin stub holder for 64x 12.7mm or 16x 25.4mm pin stubs, M4
Product # Unit Price* Add to Quote / Cart
12-003337 each €447,50
Qty:



Ordering Information EM-Tec C-Square multi pin stub holders for JEOL SEM stage adapters with 14mm connection


*Prices are without tax. Tax might be added in cart.

EM-Tec CS64/16 C-Square multi pin stub holder for 64x 12.7mm or 16x 25.4mm pin stubs, M4 EM-Tec CS9/4 C-Square multi pin stub holder for 9x 12.7mm or 4 x 25.4mm pin stubs, 14mm JEOL stub
Product # Unit Price* Add to Quote / Cart
12-006332 each €84,50
Qty:


EM-Tec CS16/4 C-Square multi pin stub holder for 16x 12.7mm or 4 x 25.4mm pin stubs, 14mm JEOL stub EM-Tec CS16/4 C-Square multi pin stub holder for 16x 12.7mm or 4 x 25.4mm pin stubs, 14mm JEOL stub
Product # Unit Price* Add to Quote / Cart
12-006333 each €84,50
Qty:


EM-Tec CS25/4 C-Square multi pin stub holder for 25x 12.7mm or 4x or 9x 25.4mm pin stubs,  14mm JEOL stub EM-Tec CS25/4 C-Square multi pin stub holder for 25x 12.7mm or 4x or 9x 25.4mm pin stubs, 14mm JEOL stub
Product # Unit Price* Add to Quote / Cart
12-006334 each €178,50
Qty:


EM-Tec CS36/9 C-Square multi pin stub holder for 36x 12.7mm or 9 x 25.4mm pin stubs, 14mm JEOL stub EM-Tec CS36/9 C-Square multi pin stub holder for 36x 12.7mm or 9 x 25.4mm pin stubs, 14mm JEOL stub
Product # Unit Price* Add to Quote / Cart
12-006335 each €248,50
Qty:


EM-Tec CS49/9 C-Square multi pin stub holder for 49x 12.7mm or 9 x 25.4mm pin stubs, 14mm JEOL stub EM-Tec CS49/9 C-Square multi pin stub holder for 49x 12.7mm or 9 x 25.4mm pin stubs, 14mm JEOL stub
Product # Unit Price* Add to Quote / Cart
12-006336 each €338,50
Qty:


EM-Tec CS64/16 C-Square multi pin stub holder for 64x 12.7mm or 16x 25.4mm pin stubs, 14mm JEOL stub EM-Tec CS64/16 C-Square multi pin stub holder for 64x 12.7mm or 16x 25.4mm pin stubs, 14mm JEOL stub
Product # Unit Price* Add to Quote / Cart
12-006337 each €451,50
