For accurate cutting of glass and silicon wafers
The Karate Groover is a precise scoring instrument for substrates such as glass plates, cover slips and a silicon wafers along a straight line.
It is capable of scoring materials with a thickness of 0.1 to 2.0 mm. It allows for cutting of glass, microscope slides, cover slips and wafers to the desired custom size.

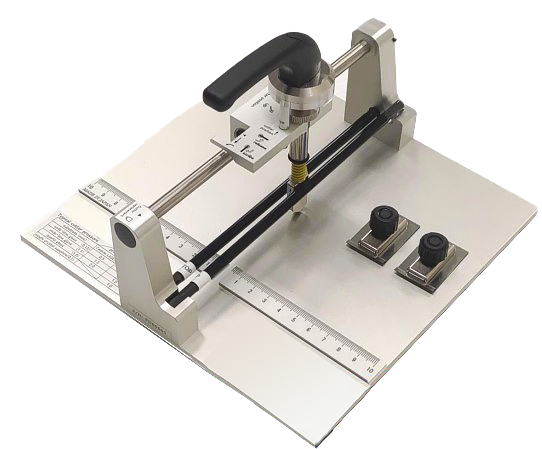

The system is built on a sturdy base plate with accurate guiding rods to move the cutting disc to create the grooves. It utilizes a long-lasting cutting disc which can be precisely adjusted in height and includes a spring-loaded pressure regulator. The sample can be freely positioned on the base plate. To keep the sample in a stable position, two magnetic plate guides with rubber surfaces are supplied with the Karate Groover. This tool is available in 4 sizes. A useful tool for breaking the samples after using the Karate Groover to scribe the surface are the wafer cleaving pliers.
Technical specificities for the Karate Groover
Type |
Karate Groover 21 |
Karate Groover 31 |
Karate Groover 41 |
Karate Groover 51 |
Product number |
||||
Cutting range |
0.1 – 2.0 mm |
0.1 – 2.0 mm |
0.1 – 2.0 mm |
0.1 – 2.0 mm |
Body dimensions |
210x210x 136 mm |
310x310x136 mm |
410x410x136 mm |
510x510x136 mm |
Actual cutting area |
135x210 mm |
235x310 mm |
335x410 mm |
435x510 mm |
Max. Cutting length |
115 mm |
215 mm |
315 mm |
415 mm |
Weight |
1.4 kg |
2.41 kg |
4.25 kg |
5.2 kg |
Magnet plate guide |
2 x 25x35 mm |
2 x 25x35 mm |
2 x 25x35 mm |
2 x 25x35 mm |

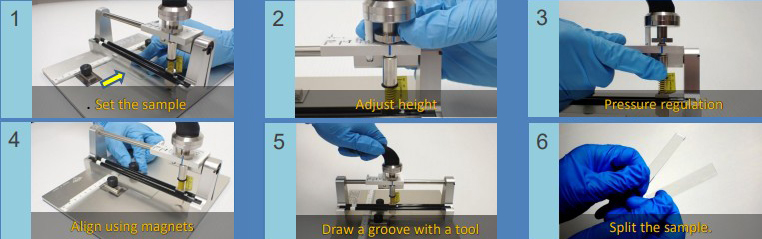

How to use the Karate Groover to cut glass or silicon wafers:
Set the sample, adjust the height of the cutting disc, regulate the pressure, align the sample using magnets, draw a groove with the tool and split the sample.
Ordering information for Karate Groover scoring instrument
|
|||||||||||||||||||||||||||||||
